V1 Dragon Motorsports 1.0 [Extended\Full-Cage\Double Door Bars] - [Frame #290] - SOLD

[Ark :D]

Isn't building a Goblin, fun?

I'm half-tempted to build another one!



[Jareth]

Started laying out the floor pan but was a little confused, did not realize at first that is now a two piece pan.

Instead of using silicone between the floor pan and the frame I decided to use a few rolls of this.

Here is a video of me applying it.

My Goblin Build - 14

https://youtube.com/channel/UCEn-zYTbTKGZSdxmppT7Miw



[MJP61]

Started laying out the floor pan but was a little confused, did not realize at first that is now a two piece pan.

Instead of using silicone between the floor pan and the frame I decided to use a few rolls of this.

Here is a video of me applying it.

My Goblin Build - 14

https://youtube.com/channel/UCEn-zYTbTKGZSdxmppT7Miw

How did this foam tape work out for you?



[Jareth]

Seems like it will work, I have it taped down on all the bottom surfaces but have not riveted on the pan yet. I have moved back to working on the wiring harness. Most likely won’t know until I have it on the road and see if it makes any noise?



[Jareth]

Pulled the trigger on tires and wheels, I was concerned about waiting due to delays I’ve seen due to COVID?



[Zoom Zoom]

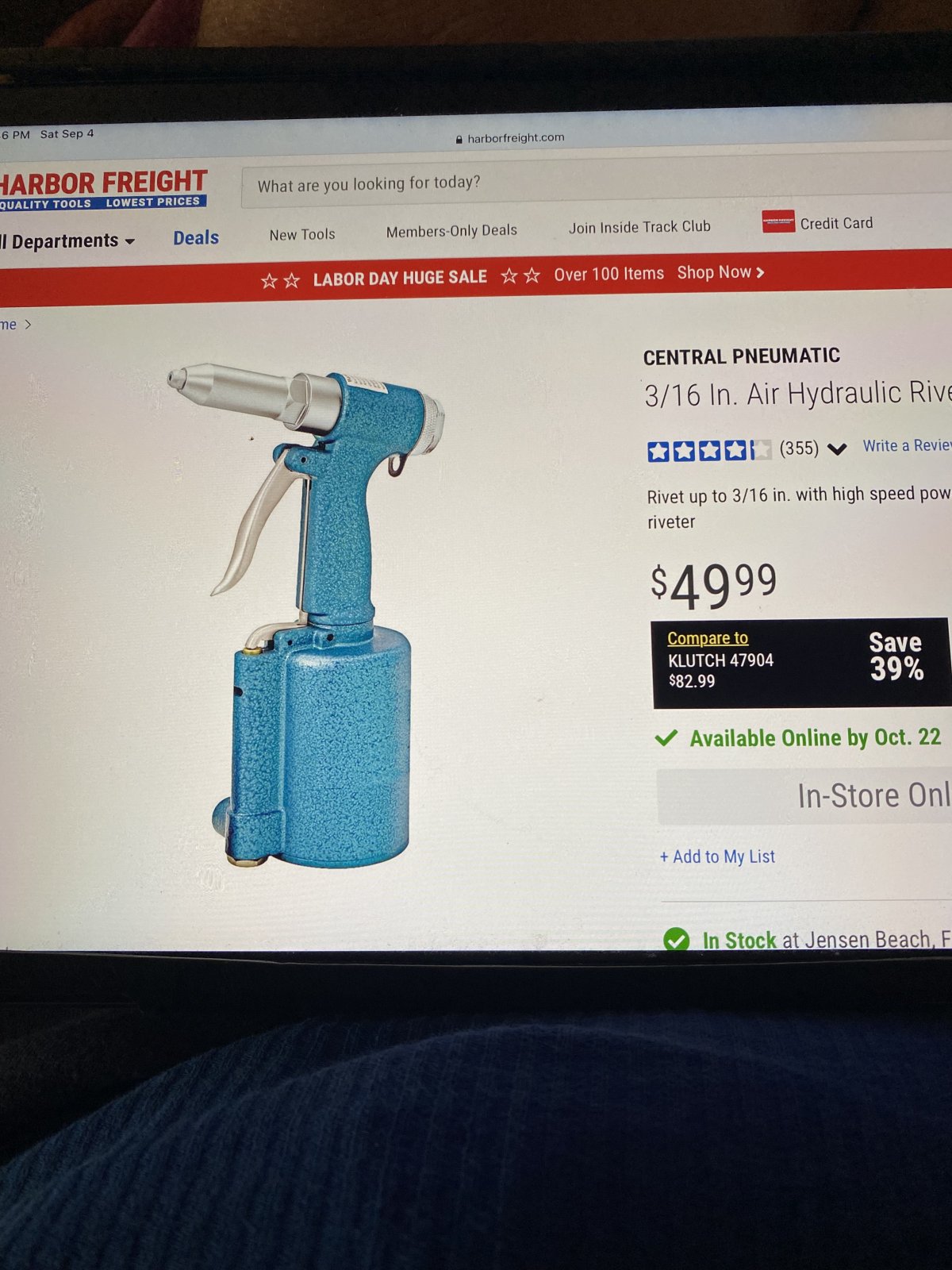

This worked great .



[Jareth]

Thanks, HF was out of stock so I have this one being delivered tomorrow



[Jareth]

Was delivered in less than 24hrs

Had all rivets of floor pan popped in just a few minutes.

.



[Jareth]

My Wheels & Tires came in so because I don’t want them sitting around collecting dust I threw them on what may become donor two someday. I’ll move them over to the Goblin when the time comes.

was able to use the following device I picked up off Amazon for $11.50 and had all 4 TPMS registered in less than 45 seconds. Local tire shop wanted $50 to perform the learn process.



[Jareth]

Am I correct that this bracket is not need for cars with automatics and will also interfere with the footwell cover? I can cut it off?

.



[MJP61]

That’s correct. It’s for the clutch pedal



[Towerdog]

No it is not needed for an auto. It holds the clutch pedal and master.



[Towerdog]

I would cut it off because you have to cut the knee well cover to match the master bracket (most forward piece)



[Jareth]

Thanks guys, seems like a waste of effort to have it welded on there when you specify during your order that you have an automatic.

.



[Jareth]

Next question, steering shaft, is there anything that will or should cove these bearings from the dirt or dust?

.



[Towerdog]

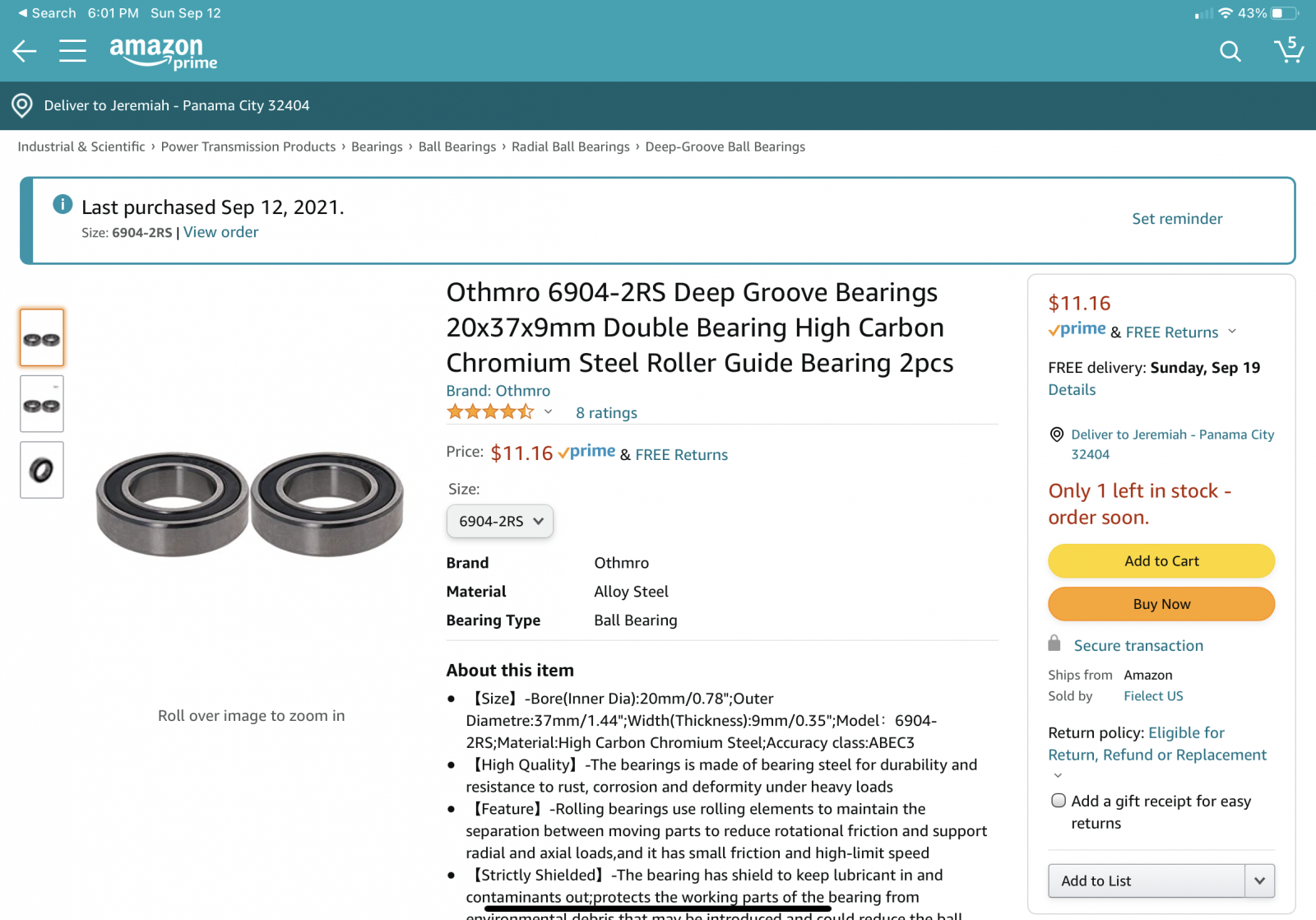

Buy a new sealed one... About $7 20x37x9mm



[jayrolls]

Buy a new sealed one... About $7 20x37x9mm

Awesome, just ordered one.



[Jareth]

Awesome, just ordered one.

do you have a link to what you bought?



[Jareth]

Along with the clip it looks like I will have to pry up the little spots that are bent down?

.



[jayrolls]

Along with the clip it looks like I will have to pry up the little spots that are bent down?

.

I used diagonal cutters and a pair of pliers to pull the tabs back.
