V1 Front uprights

[25074]

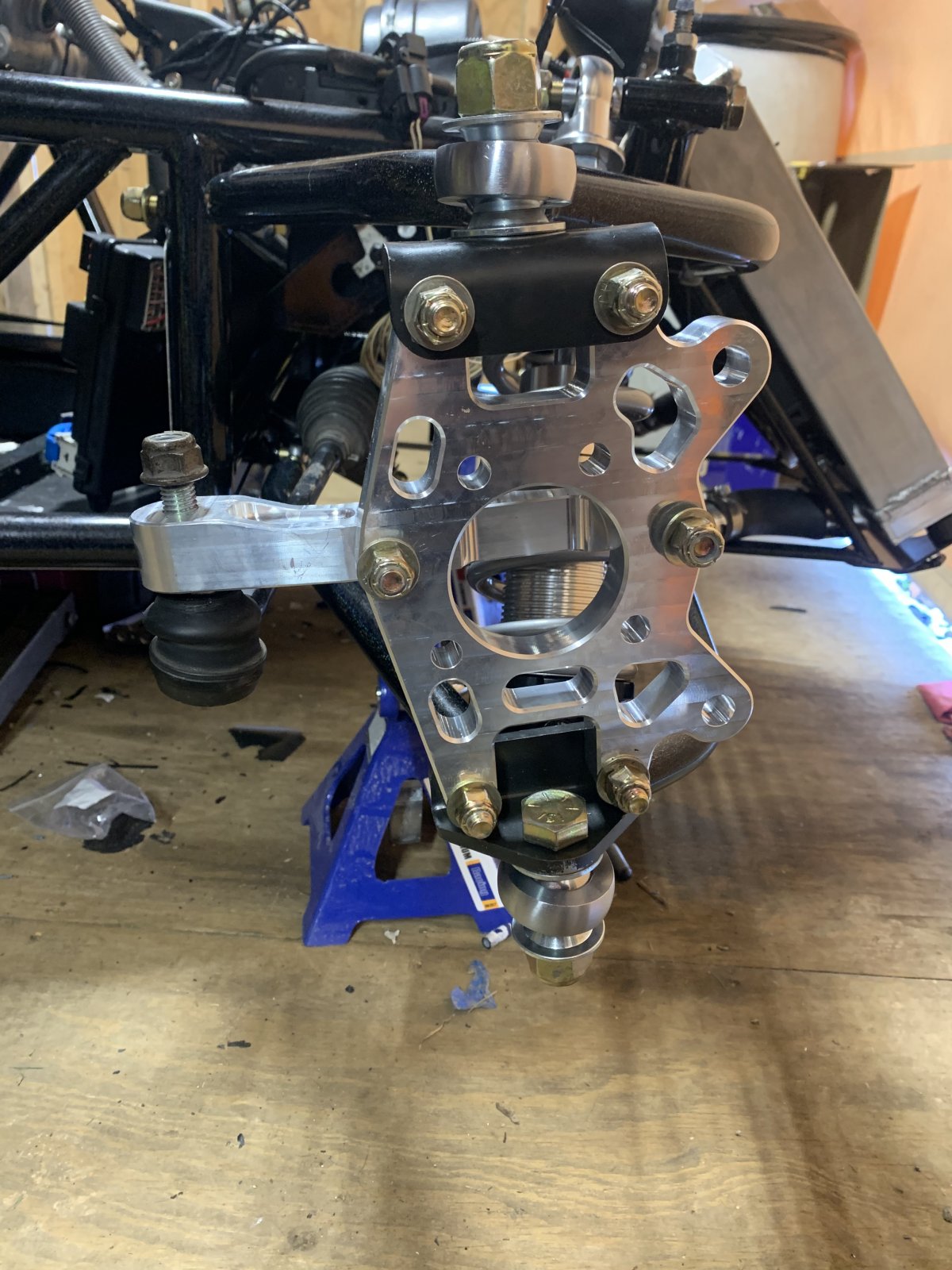

My front uprights look a little crooked.
Can someone send me a picture from the side without a wheel so I can be sure I have them mounted correctly?

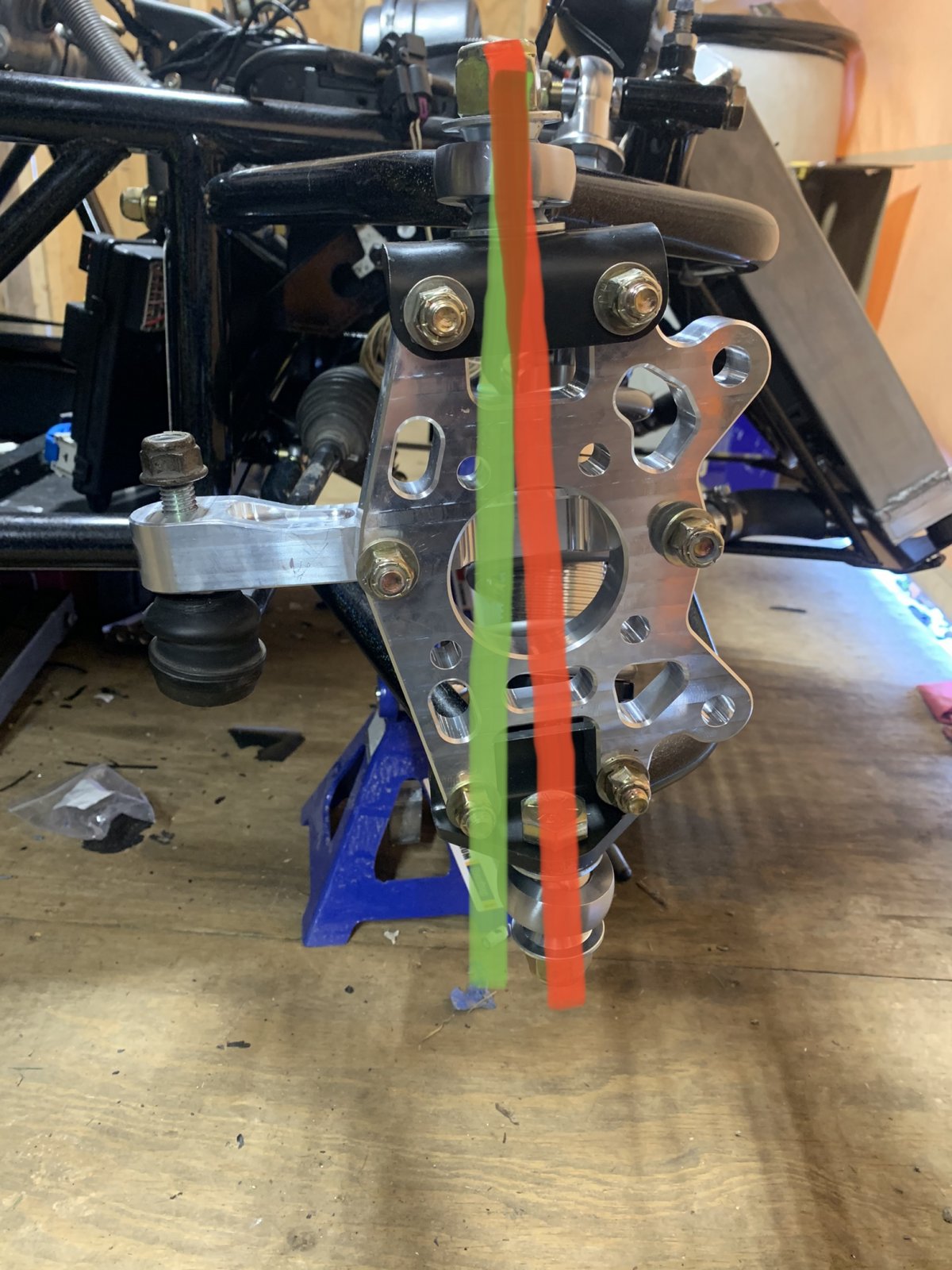

see the pictures.



[Sparvy]

My front uprights look a little crooked.
Can someone send me a picture from the side without a wheel so I can be sure I have them mounted correctly?

see the pictures.

I'm away from the car so can't shoot a pic but that looks right to me. Remember you want about 9 deg of caster after you do the alignment so the initial lengths given in the videos for thread count/turns will get you close.



[Desert Sasqwatch]

That looks correct for having caster with the top of the upright tilted toward the rear of the car. Need to match left to right for this angle from the vertical. This setting is important for drivability. Good work.



[Ross]

You want around 8 degrees caster, so you have assembled it correctly.



[Rttoys]

Yep. Caster and stuff.
