V1 Second MAP plug

[dastrups]

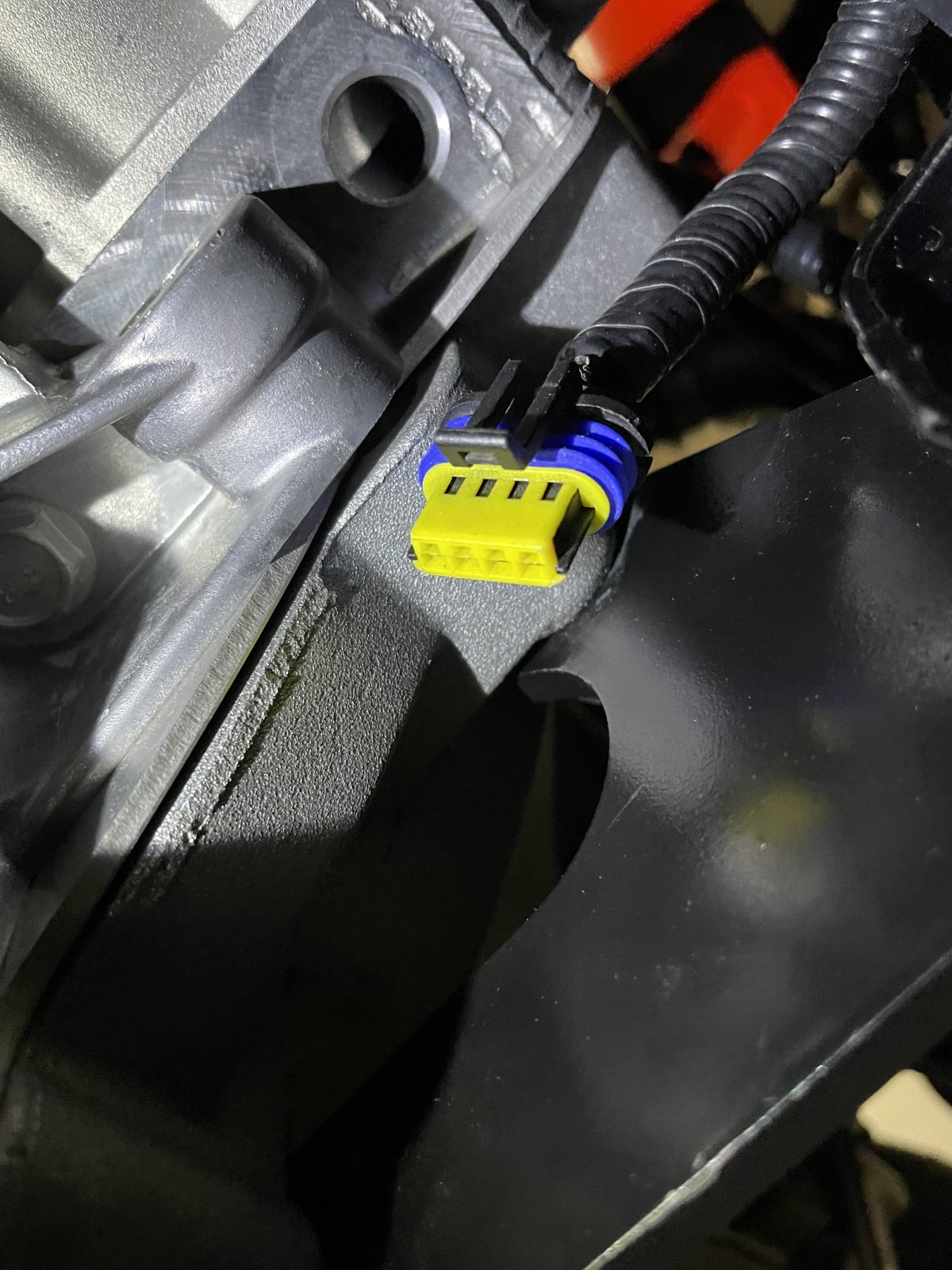

Does this look like the second MAP plug?



[Gtstorey]

I think the one that Rock Auto has is correct which doesn't match you picture.

2009 CHEVROLET COBALT 2.0L L4 Turbocharged Manifold Pressure (MAP) Sensor Connector | RockAuto



[dastrups]

I think the one that Rock Auto has is correct which doesn't match you picture.

2009 CHEVROLET COBALT 2.0L L4 Turbocharged Manifold Pressure (MAP) Sensor Connector | RockAuto

I have that one for the first MAP sensor. The second one is a 4 pin. Seems to plug in fine but just wanted to verify.



[Gtstorey]

Yeah I'm not sure, I replaced mine for the one that came on the ATK engine and not even sure the one on my original block is stock. But I'm pretty sure its a 3 wire, but don't know about the number of pins.



[dastrups]

Do you happen to know what these plugs are?



[Gtstorey]

I'm terrible at identifying plugs by their picture. Labeling the plugs is one thing I did right while disassembling mine so I never really had to look at them to plug them in. I can check late this afternoon if someone else chimes in. I have the service manual at home that has each plug depicted.



[dastrups]

I'm terrible at identifying plugs by their picture. Labeling the plugs is one thing I did right while disassembling mine so I never really had to look at them to plug them in. I can check late this afternoon if someone else chimes in. I have the service manual at home that has each plug depicted.

Smart!! Should have done that myself.



[Gtstorey]

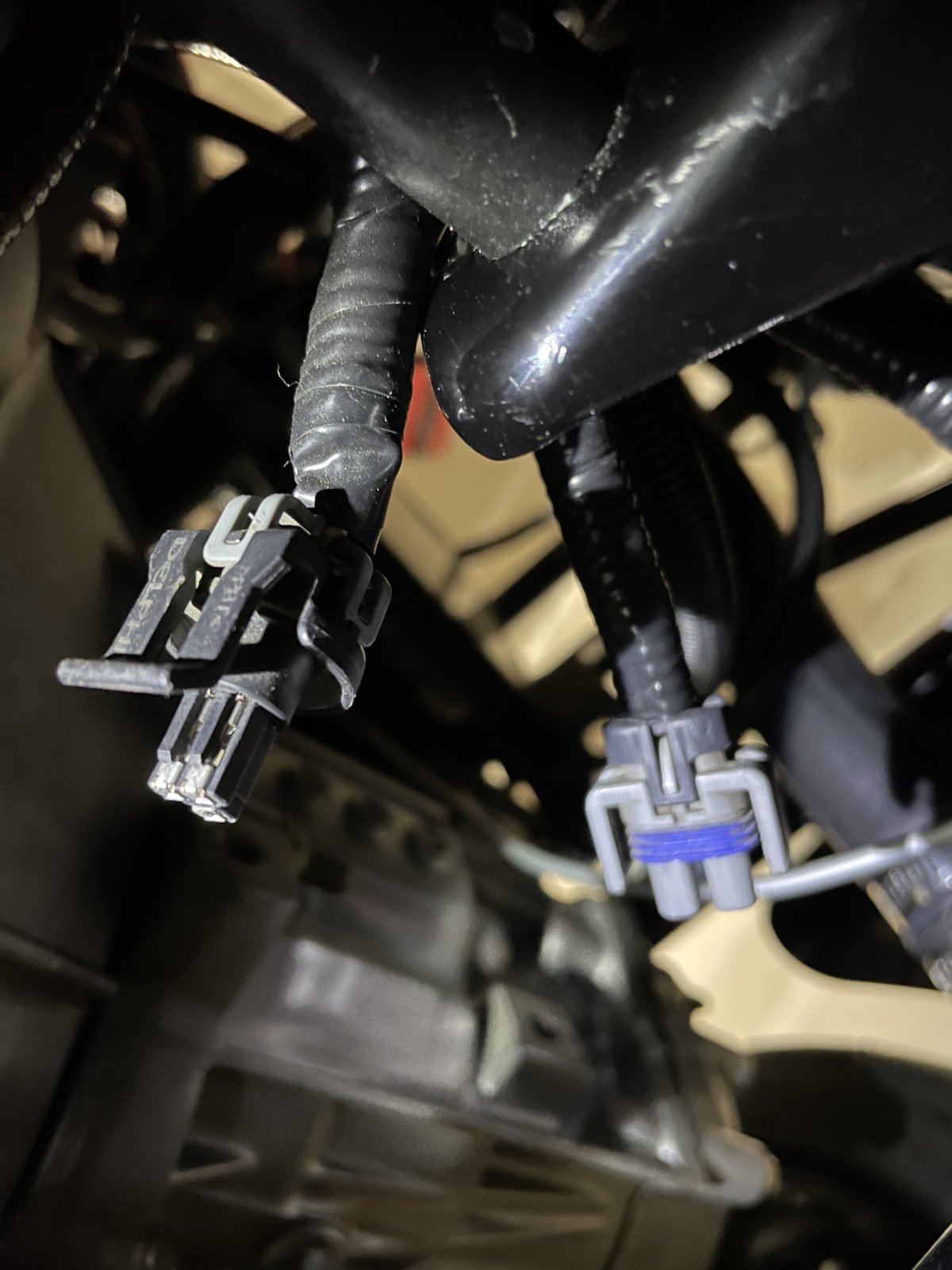

I think the grey one is ac compressor clutch and should have a dark green and black wires.
The black looks like it is the ac pressure switch and should have tan, grey and orange/black wires on the lnf.



[TheNuker]

Does this look like the second MAP plug?

I believe that is the second map plug, I'll check mine later to confirm.

Nuker-
