Goblin CAD Drawings

[Brian74]

Are there any CAD drawings/files of the Goblin available anywhere? Particularly the front end section of the frame with the removable radiator bulkhead.

I’m doubting there is anything available, but it never hurts to ask.



[Rauq]

We've gotten a drawing here and there for a bracket or two (the power steering mount bracket comes to mind) but to my knowledge there's not been a release of drawings for the sections of the frame or anything larger than that.



[DCMoney]

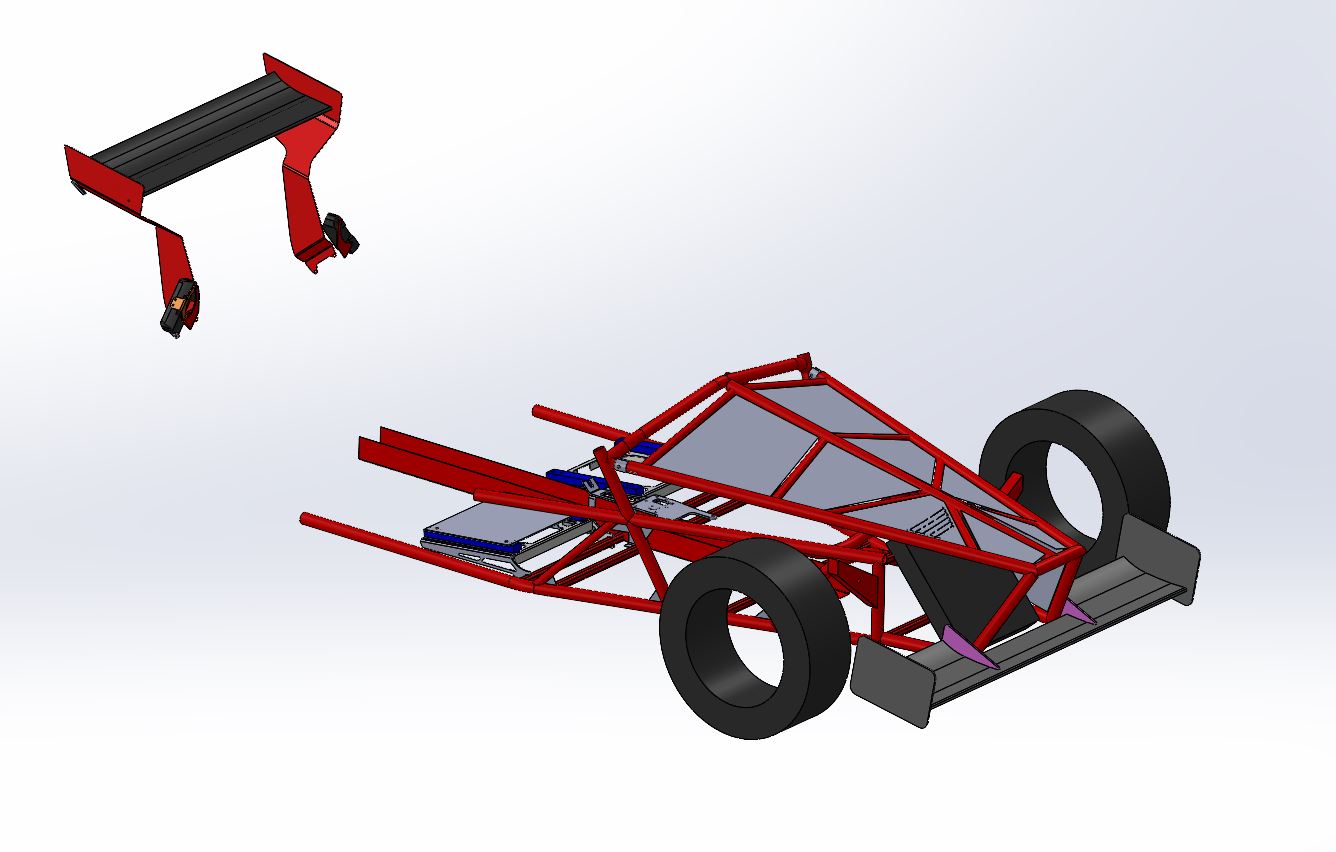

I've got a very rough seats forward mock up that I used for mocking up a bunch of my parts you are welcome to.



[Brian74]

I've got a very rough seats forward mock up that I used for mocking up a bunch of my parts you are welcome to.

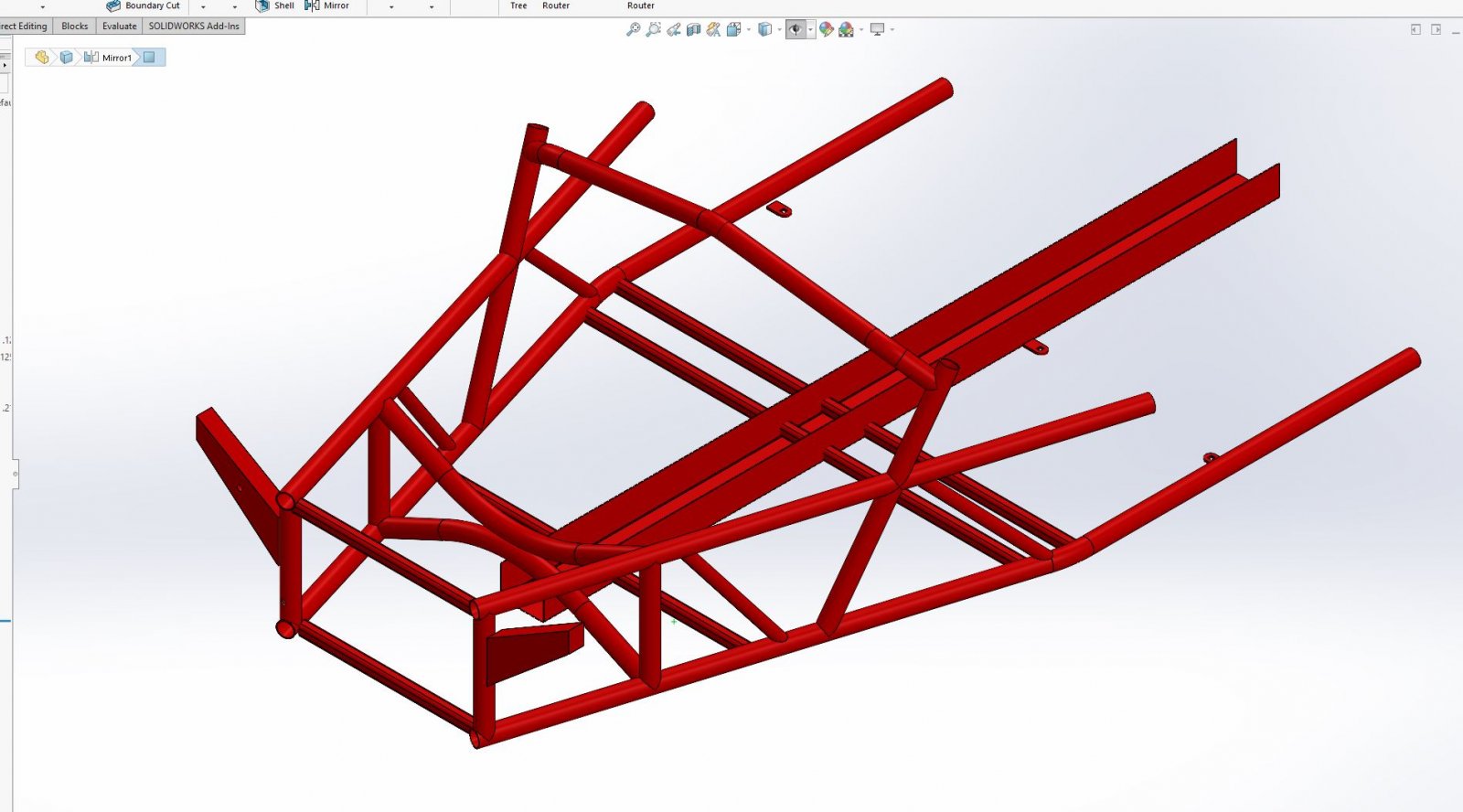

View attachment 29670

That looks like it would work

View attachment 29671



[DCMoney]

What format(s) you want it in?



[Brian74]

What format(s) you want it in?

DWG or DXF would probably be just fine, unless you have it in a native F3D format.



[DCMoney]

It's a Solidworks 3D model, not the best for opening in a 2d cad software. Try opening the .sldprt file in Fusion 360, might be able to export it as dwg or dxf in the orientation you need from there.

myQNAPcloud share link

I have shared data for you via myQNAPcloud share link service.

www.myqnapcloud.com



[Swisscheese32]

If you're still around I'd love this file in 3D nuetral or solidworks native
