V1 Wiring Harness Guide Part 5 Questions

[escapepilot]

2006 SS/SC Donor had aftermarket headlights and some front end damage.

1. I have two purple wires from the same terminal. One was already cut long ago. Other is attached to a plug that was plugged into the left headlight housing. Neither had enough wire for DRL loop.

2. Left headlight plug had light blue wire with several loops - left DRL?

3. Right headlight plug had medium blue wire with several loops - right DRL?

4. Thick ground from multi plug is about 13”. Wrap small ground wires from lug to multi plug?



[jayrolls]

2006 SS/SC Donor had aftermarket headlights and some front end damage.

1. I have two purple wires from the same terminal. One was already cut long ago. Other is attached to a plug that was plugged into the left headlight housing. Neither had enough wire for DRL loop.

2. Left headlight plug had light blue wire with several loops - left DRL?

3. Right headlight plug had medium blue wire with several loops - right DRL?

4. Thick ground from multi plug is about 13”. Wrap small ground wires from lug to multi plug?

I have an 07 SS/SC here is what pulled.



[escapepilot]

2006 SS/SC Donor had aftermarket headlights and some front end damage.

1. I have two purple wires from the same terminal. One was already cut long ago. Other is attached to a plug that was plugged into the left headlight housing. Neither had enough wire for DRL loop.

2. Left headlight plug had light blue wire with several loops - left DRL?

3. Right headlight plug had medium blue wire with several loops - right DRL?

4. Thick ground from multi plug is about 13”. Wrap small ground wires from lug to multi plug?

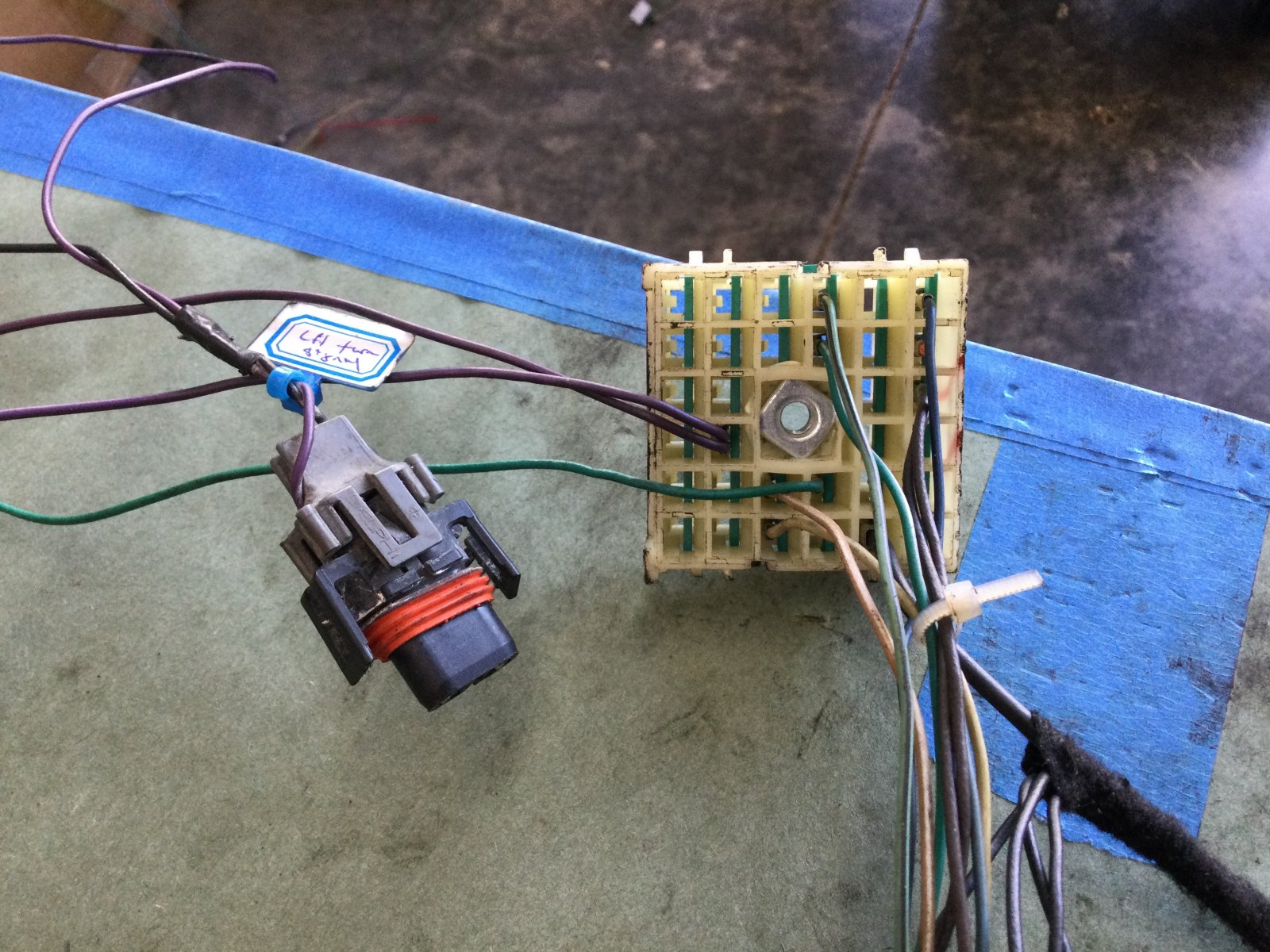

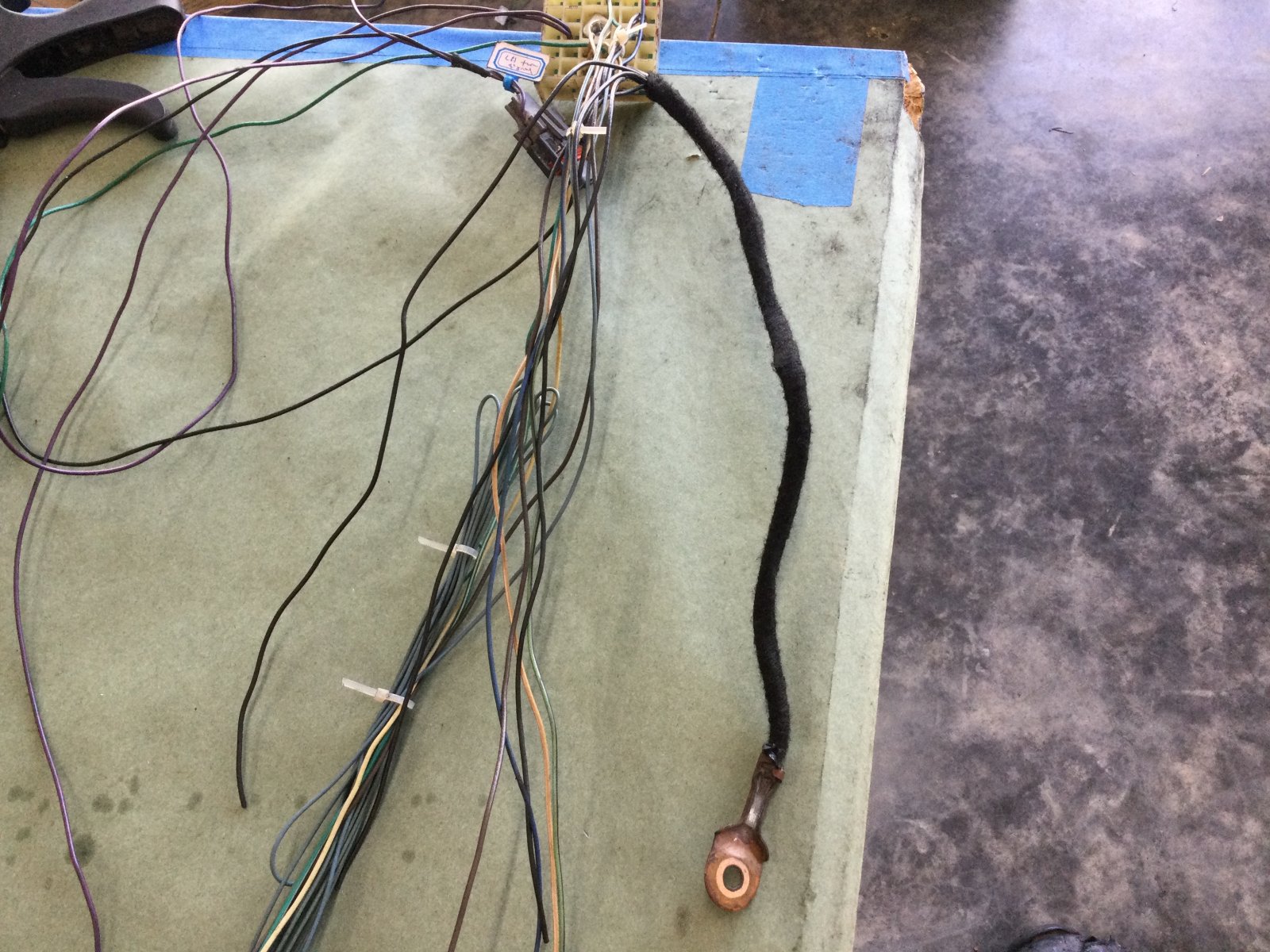

Forgot to attach pics



[Ross]

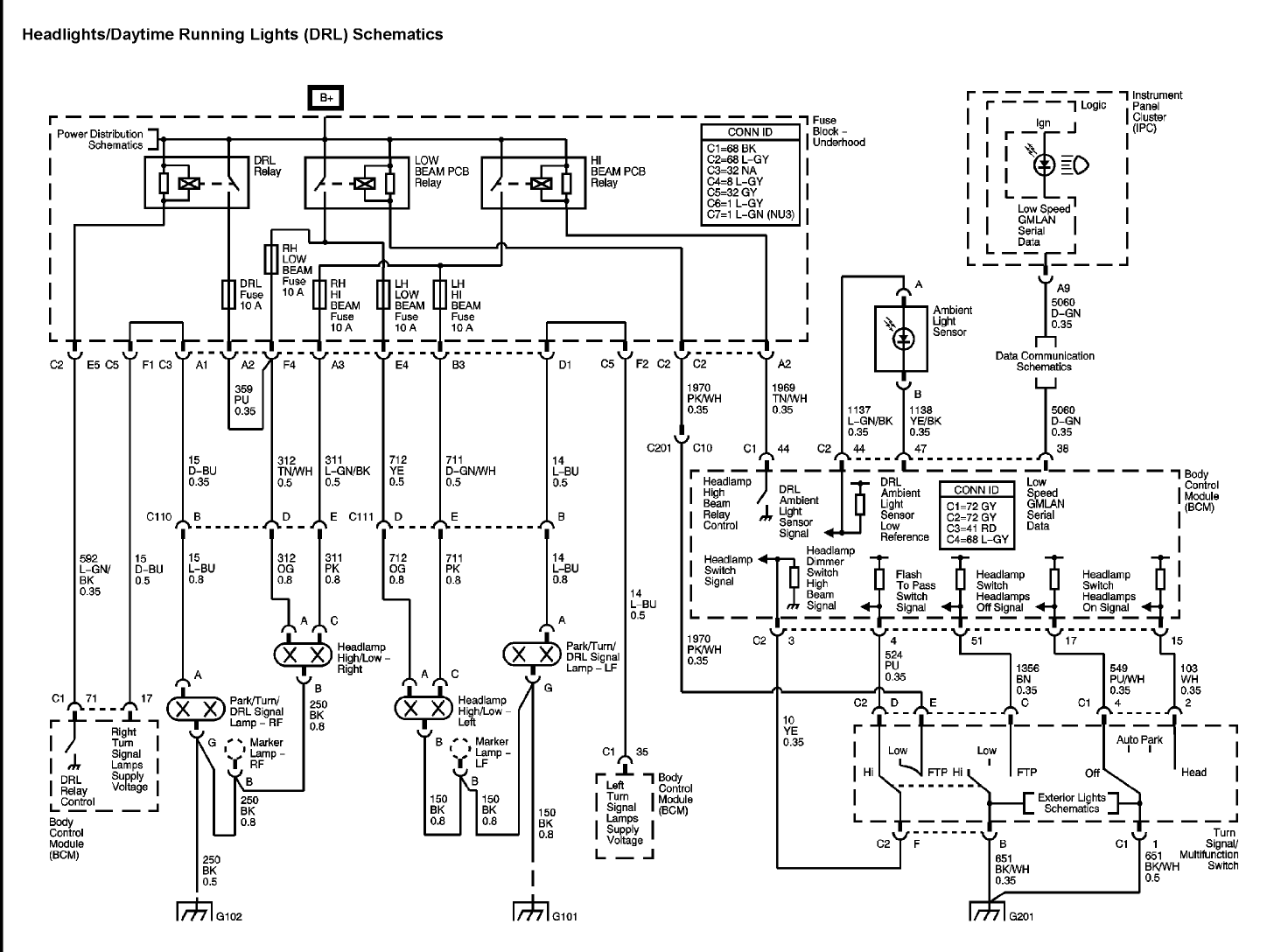

EscapePilot, have you found my wiring diagrams?
AllDataDIY Login



[escapepilot]

EscapePilot, have you found my wiring diagrams?
AllDataDIY Login

I haven’t…but will look them up now.



[escapepilot]

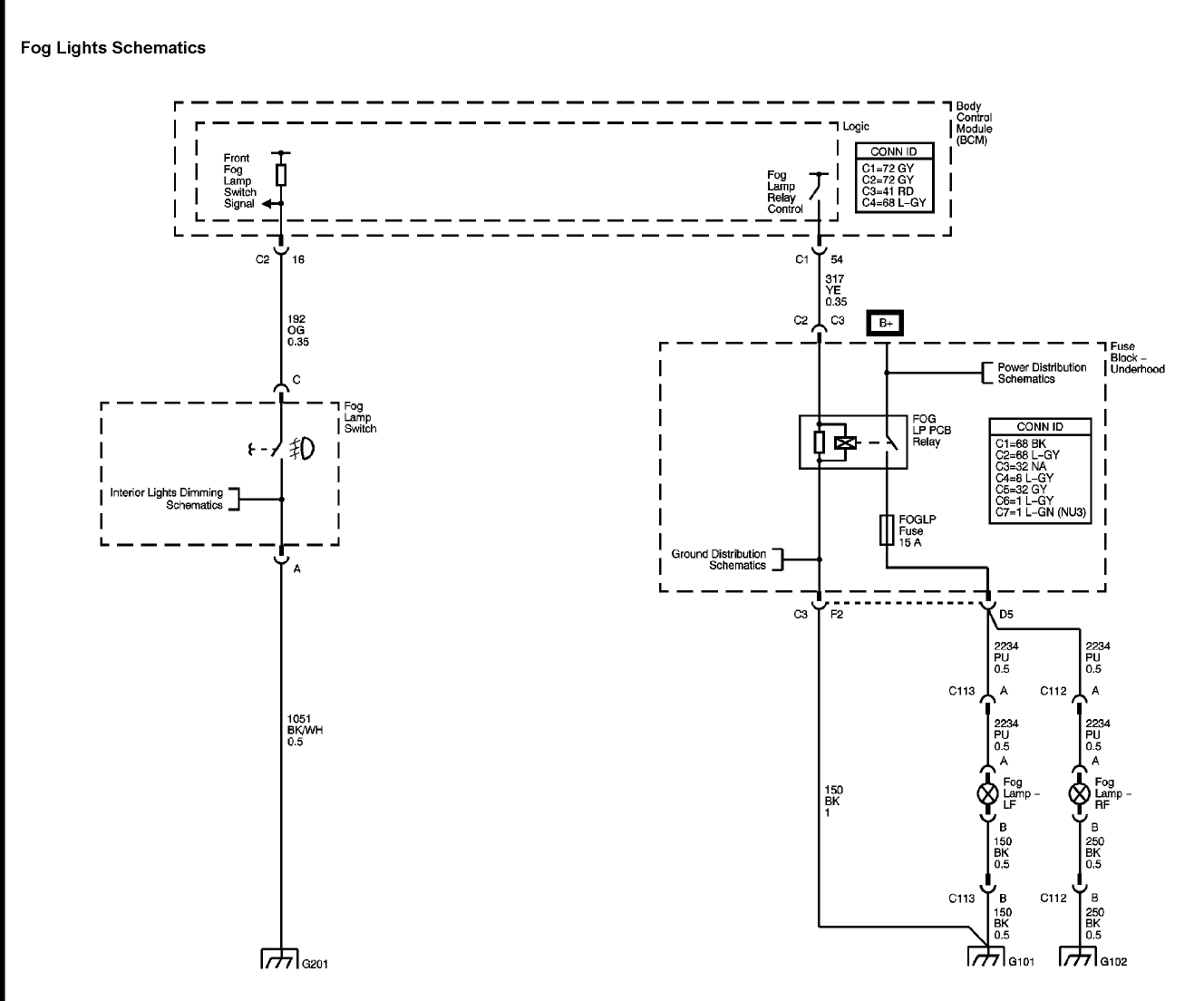

Thanks, Ross! Finally tracked it down - fog lights! My donor didn’t have a front fascia so these connectors were not plugged in and I assumed it was to a headlight assembly.
