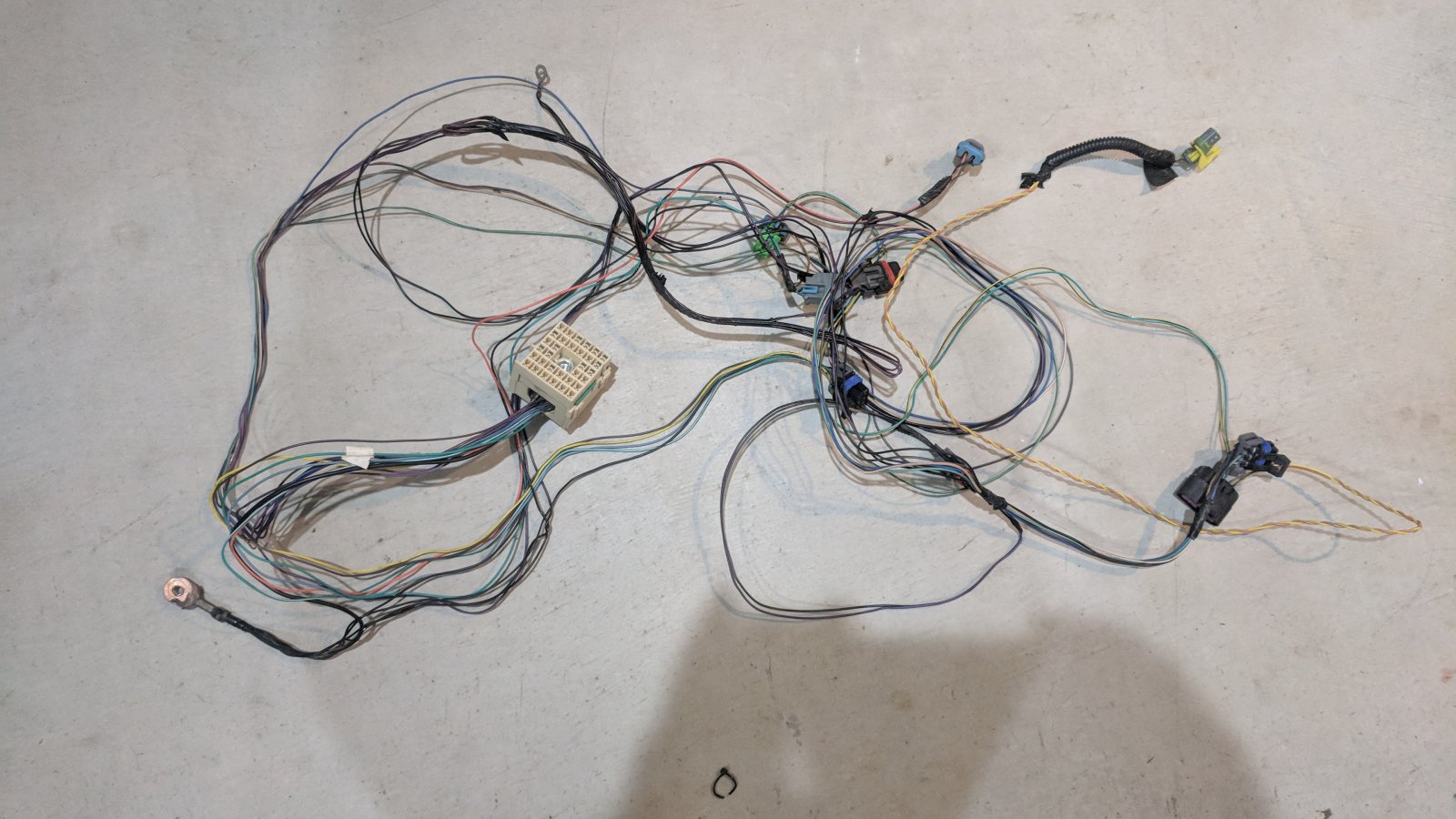

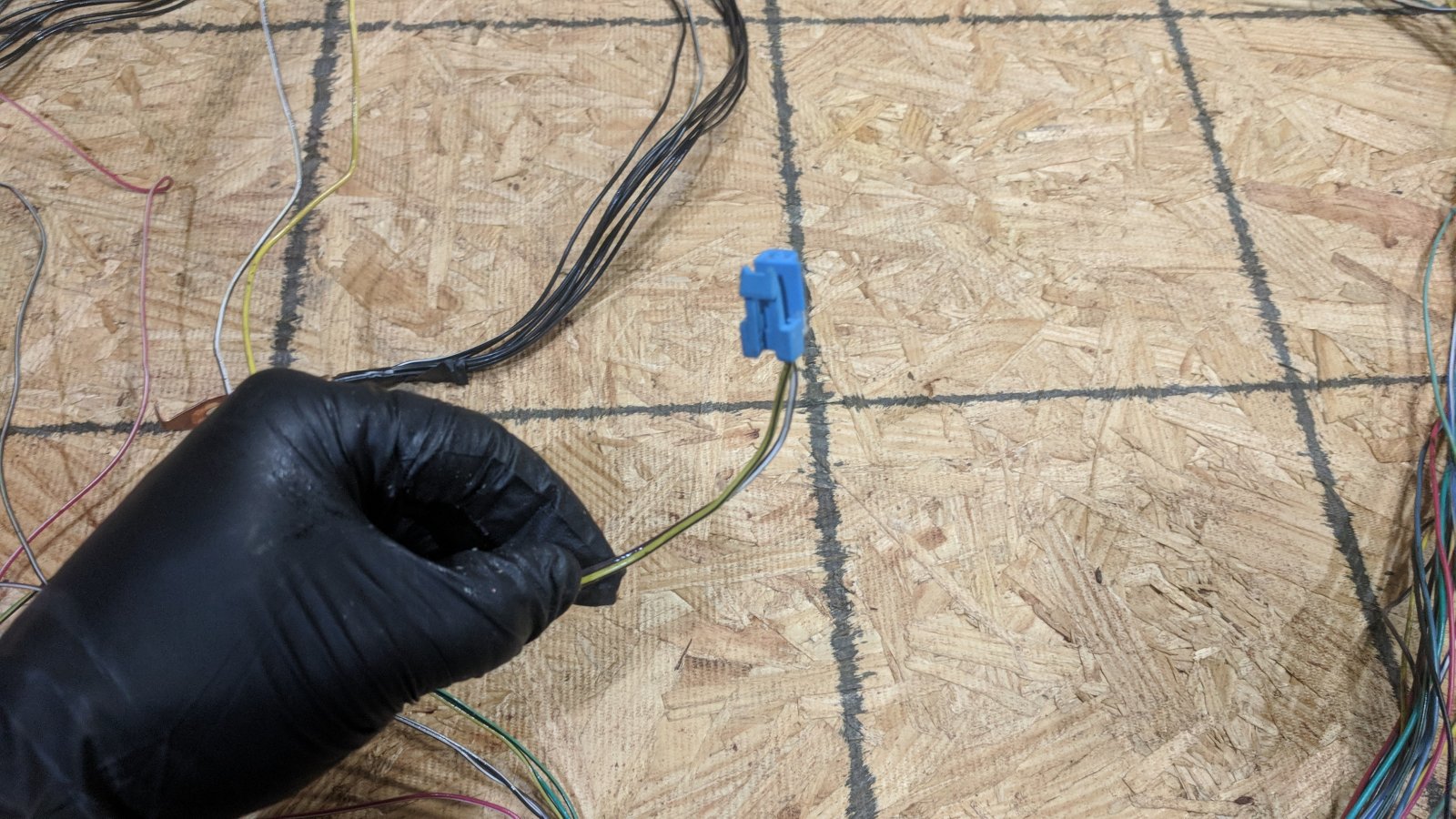

What is this solo harness? Came out of the body harness.



[k.rollin]

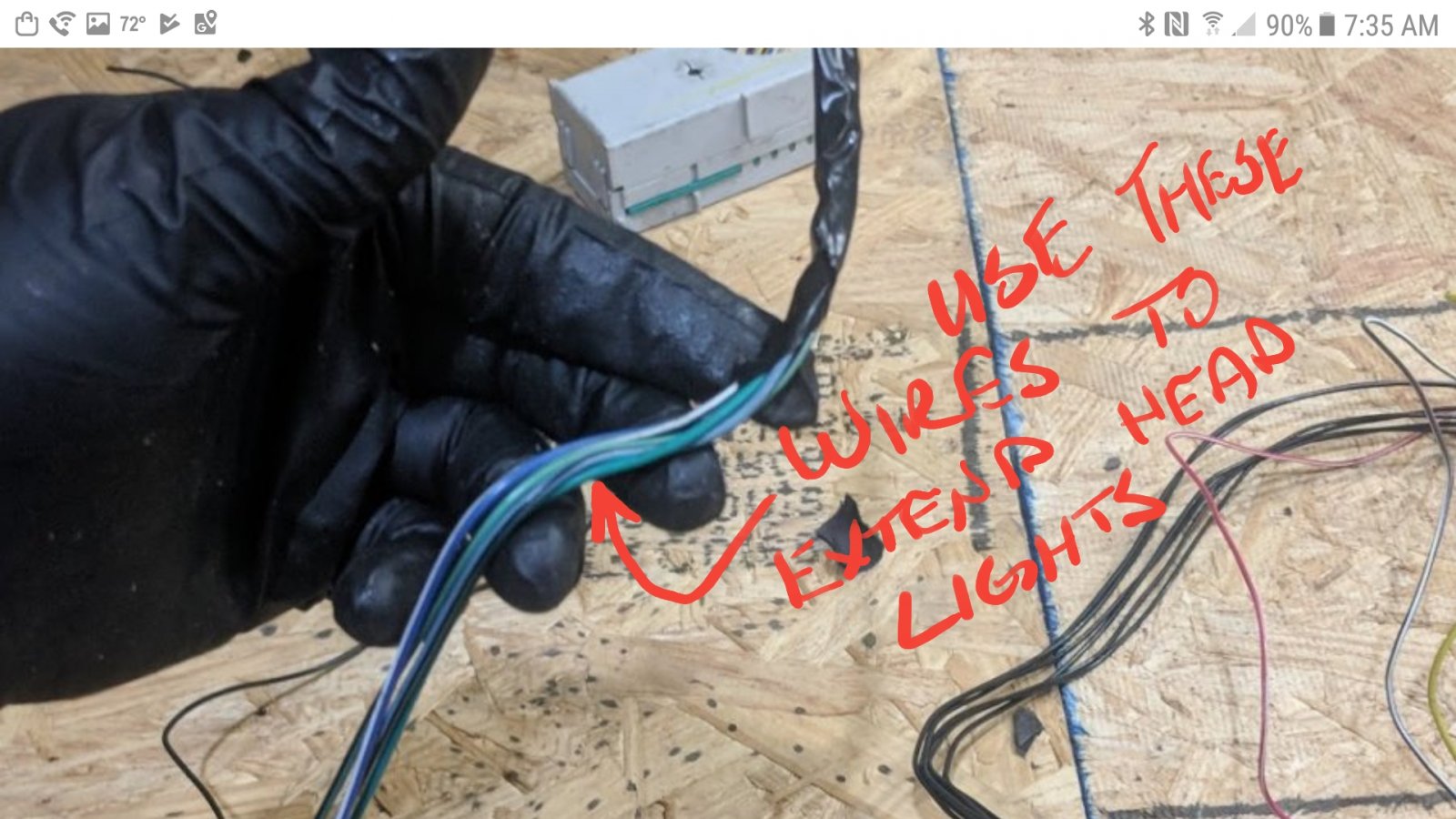

Headlights



[IDRVSLO]

Headlights

Thx!

Any of these look like they dont belong around any longer?

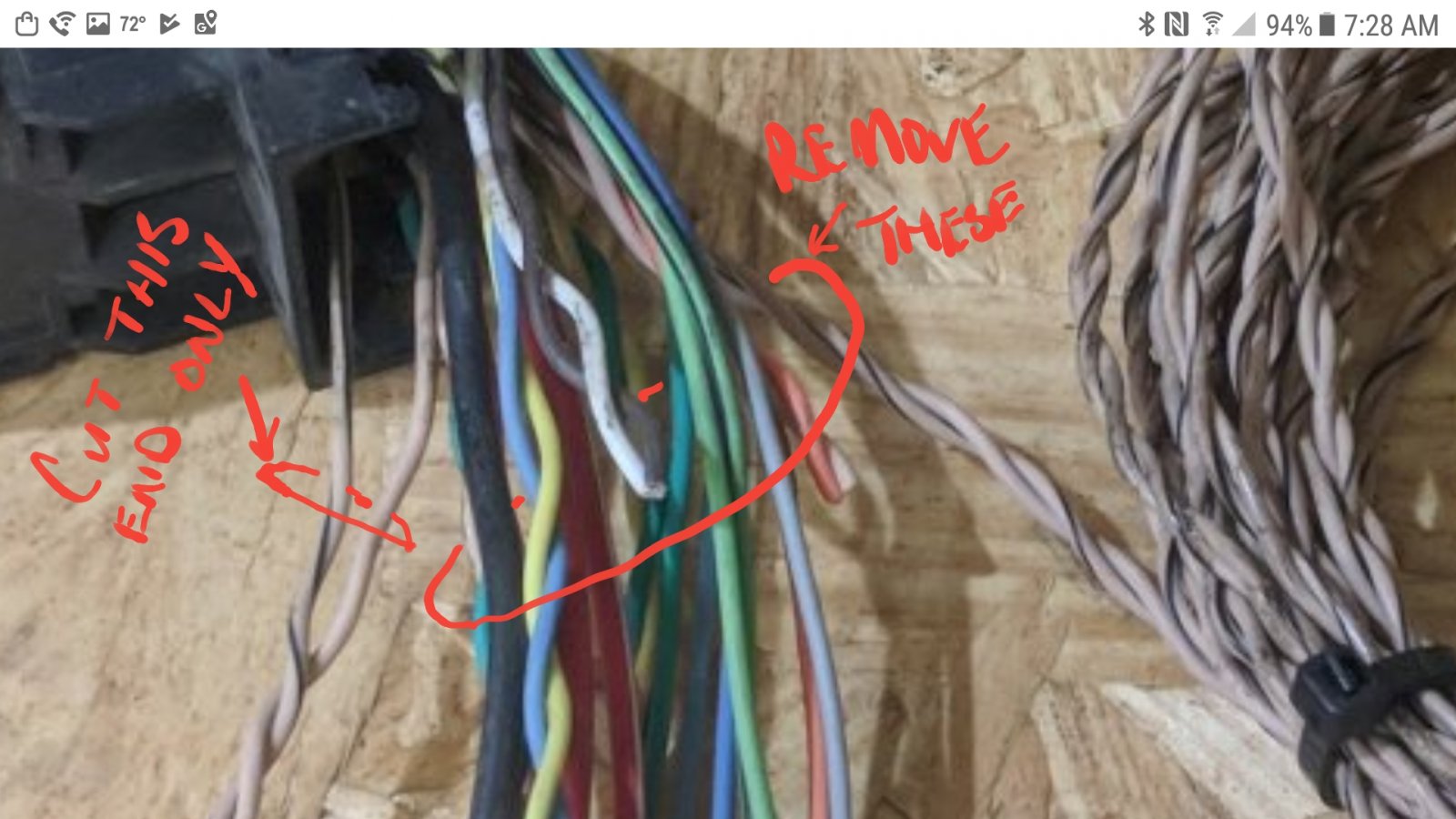

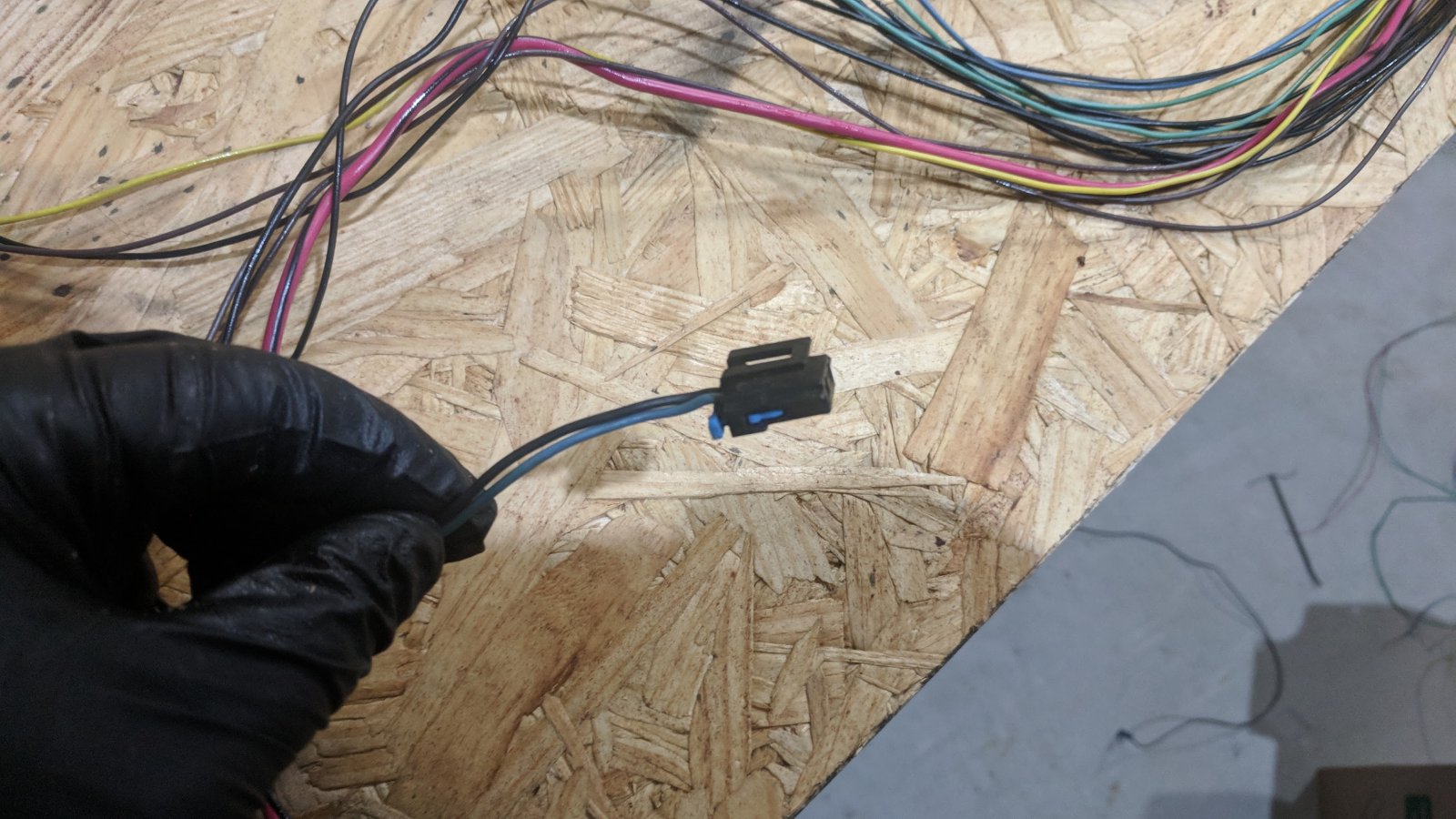

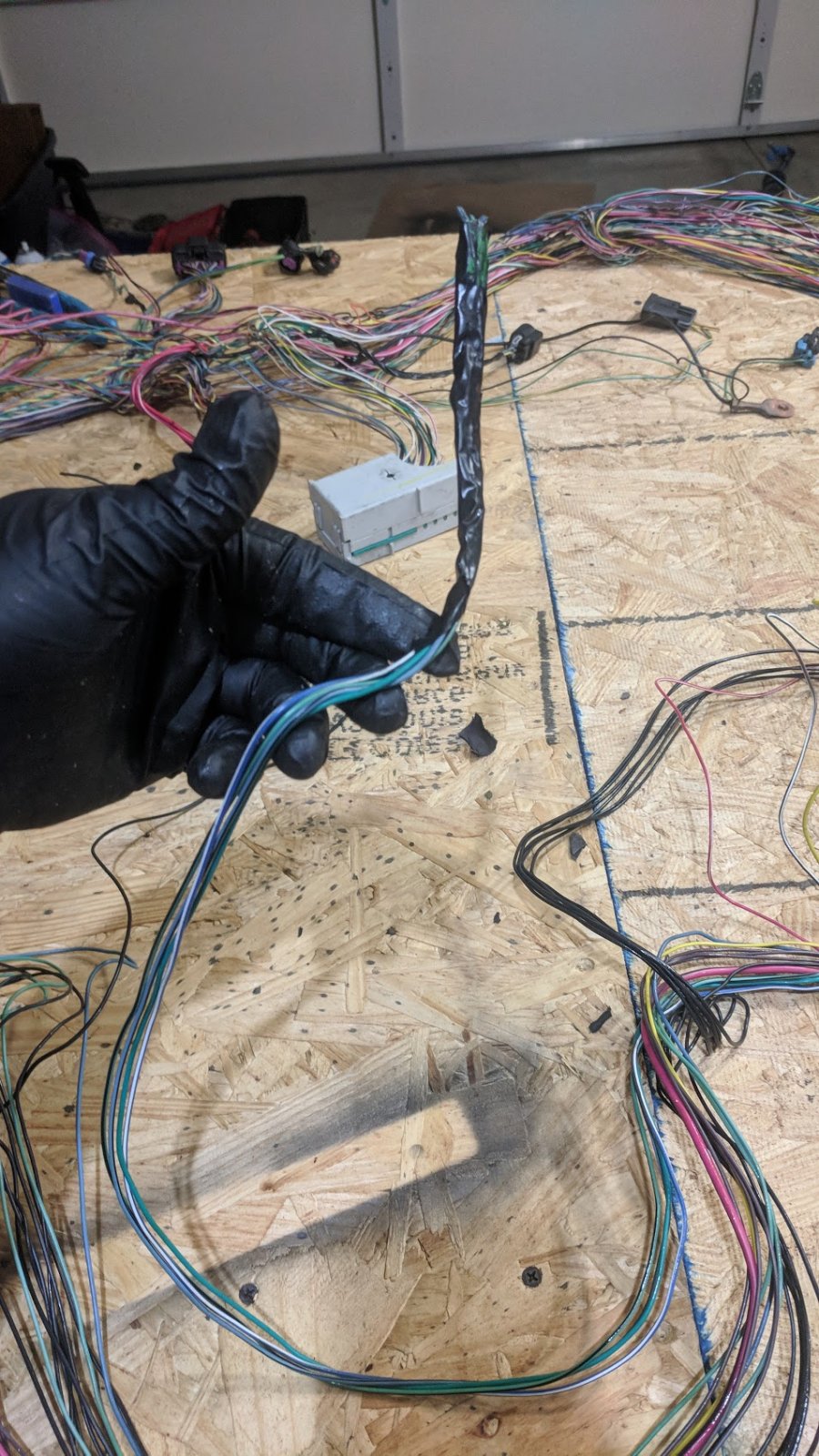

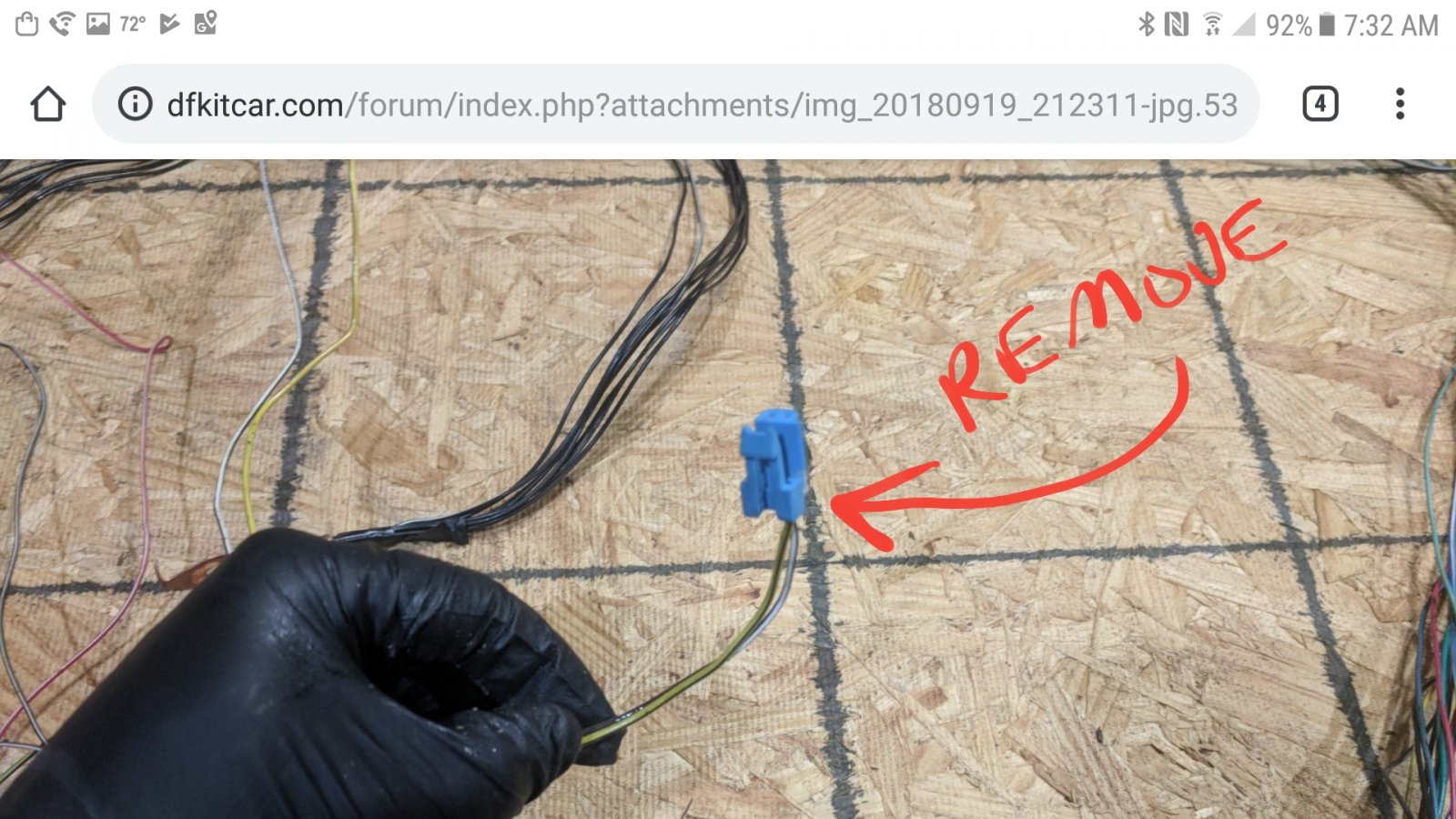

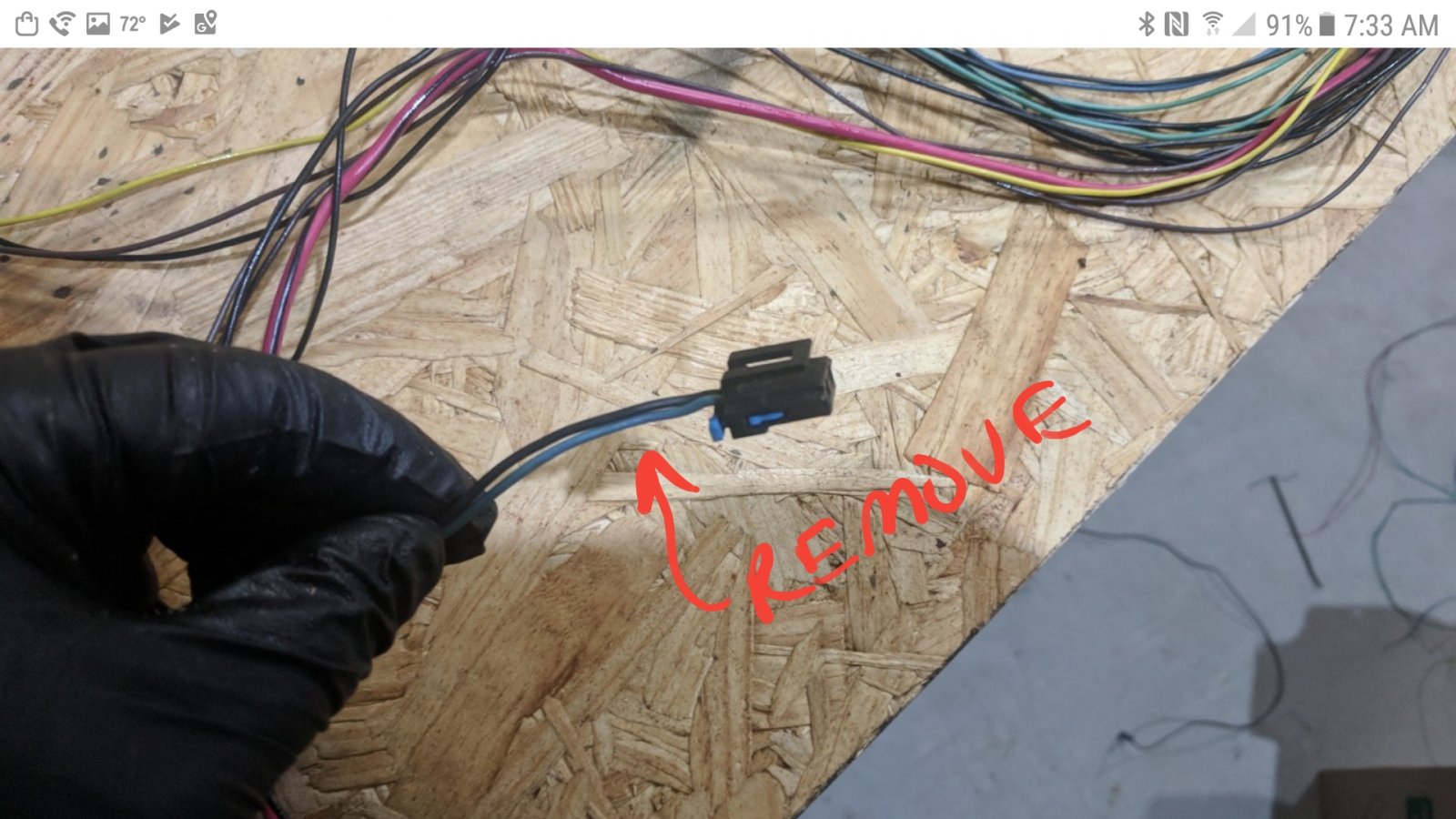

I know the long brown wires that are twist should have one set cut out. I assume it is the one going to the blue plug like in the video.....but the other doesnt go to a purple plug. The last picture of the wires without the plug I have know idea where they are from......



[IDRVSLO]

Still havent cut the speaker wires, hoping that is one of those pictured above. I also put the brakes on doing any more work for fear of messing up....ha. I did cut one wire that I didnt mean to and have to solder it back.



[Briann1177]

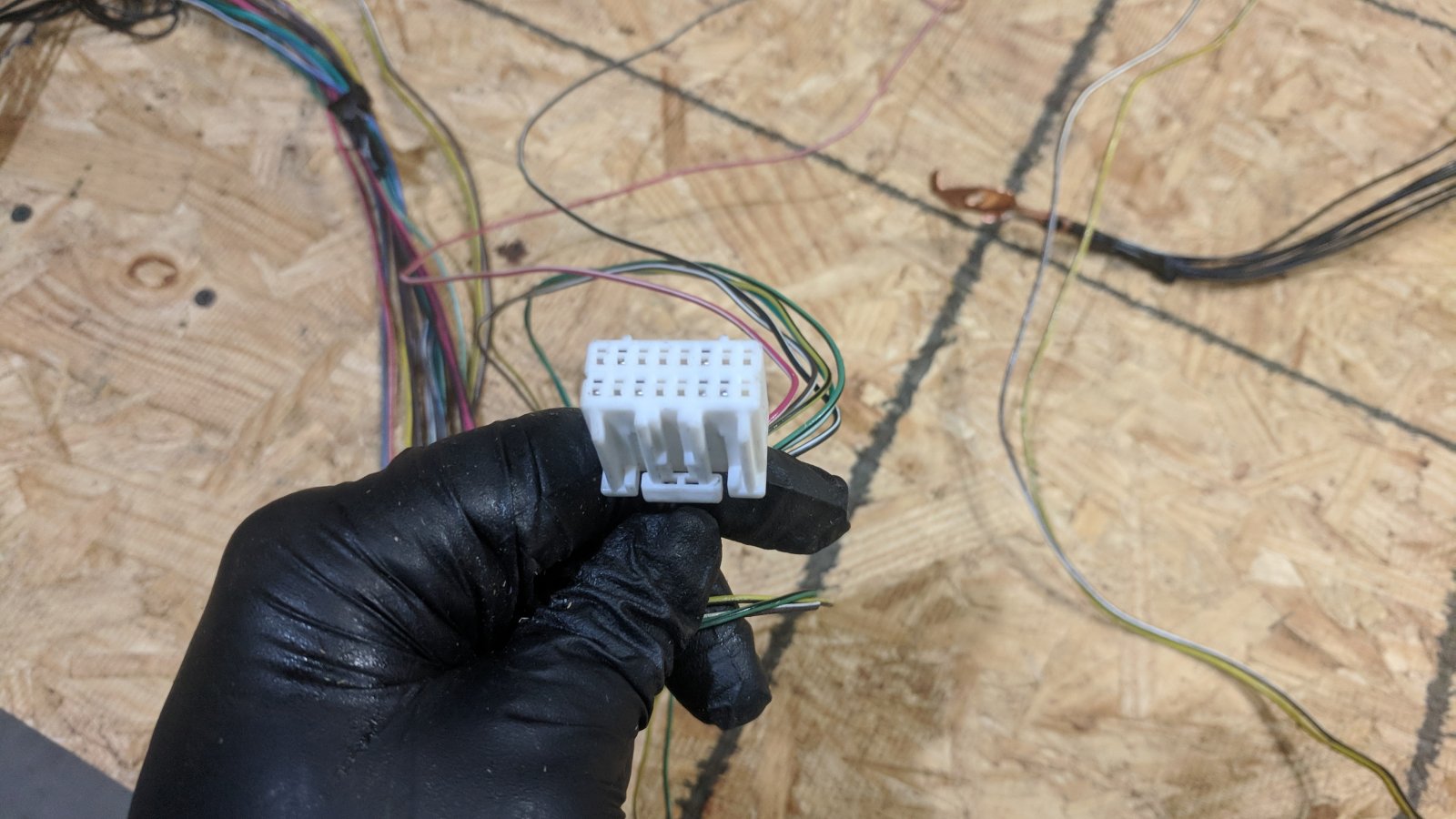

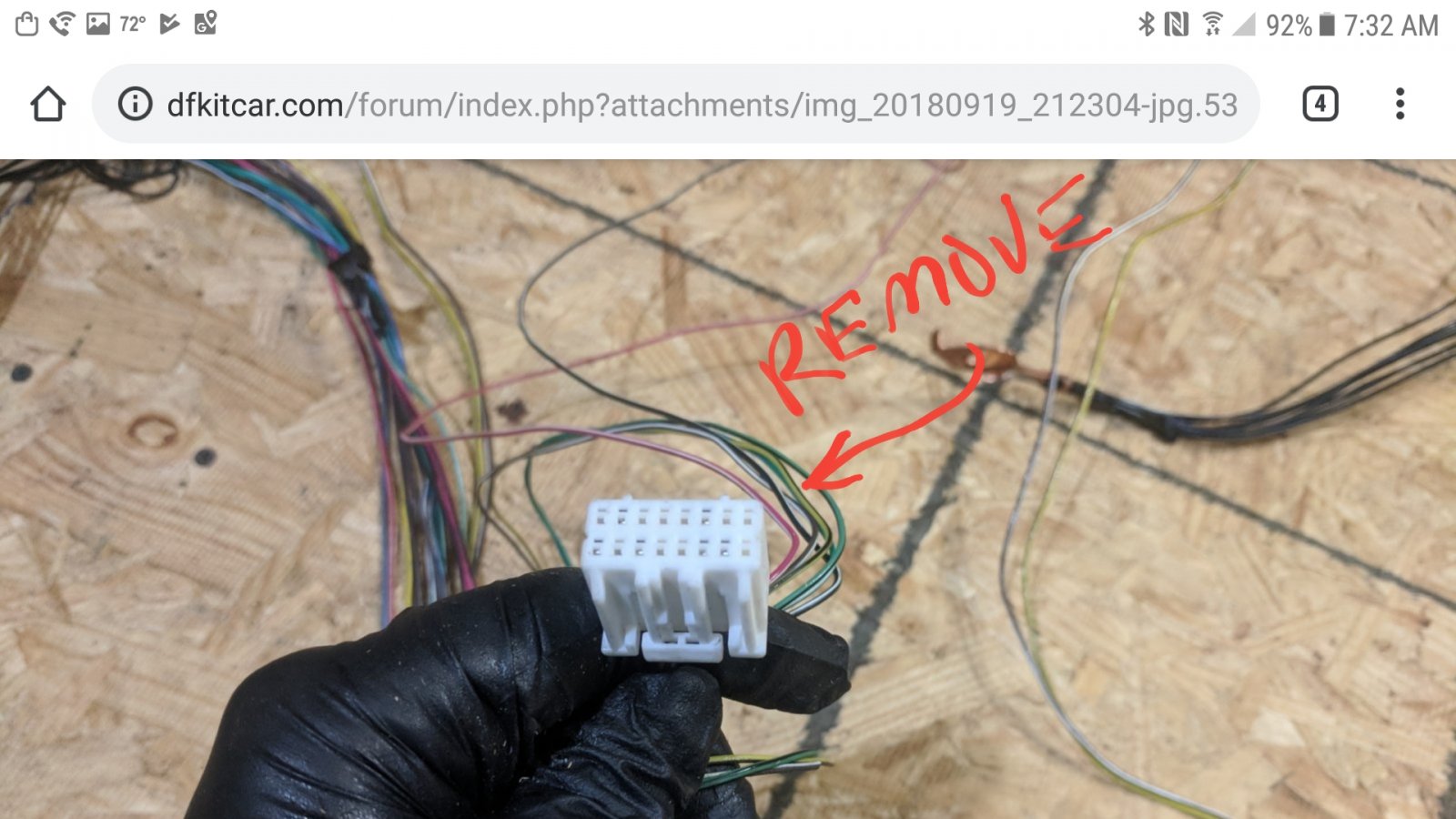

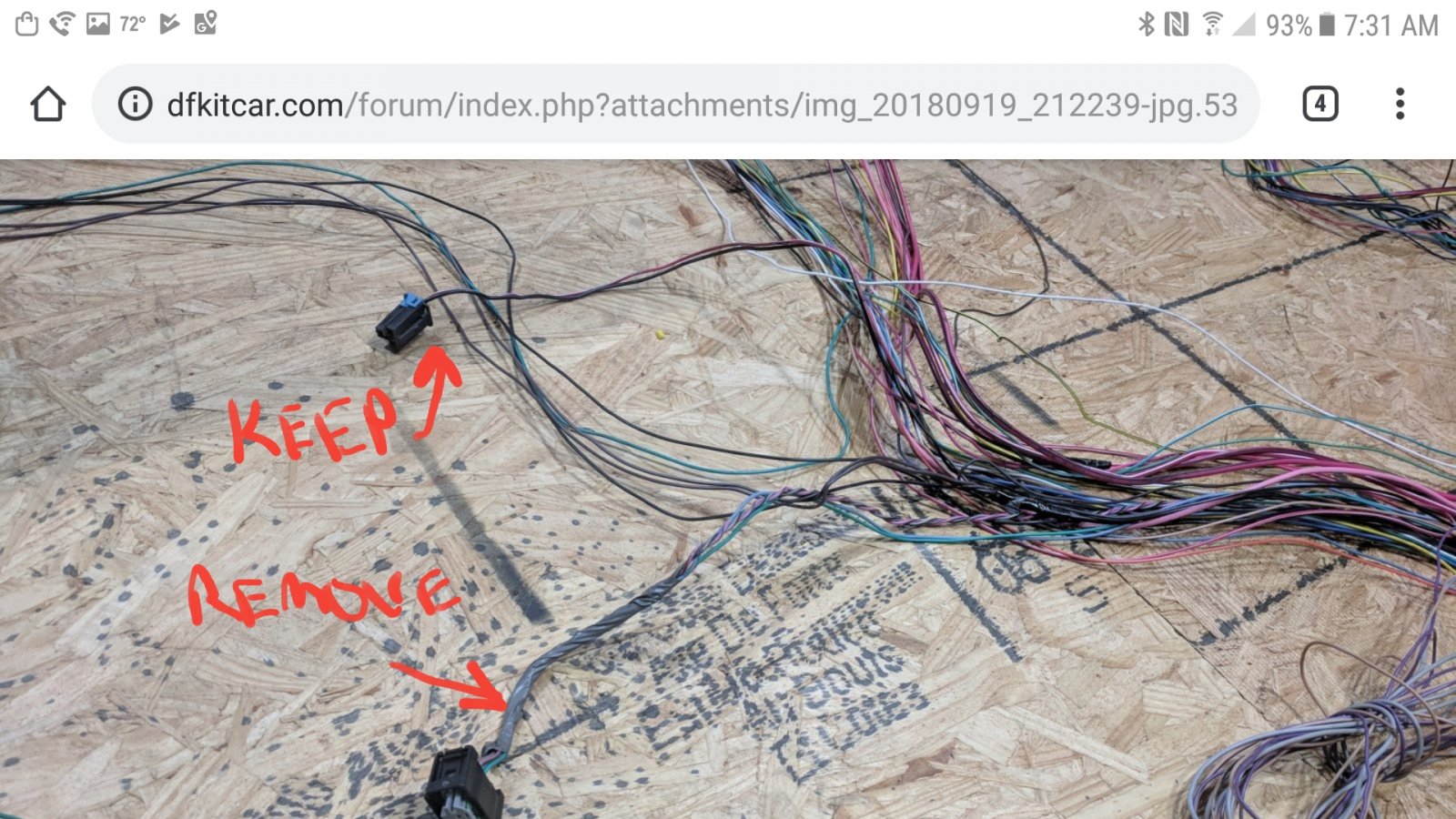

I don't see the picture of your BCM plug with the brown twisted wires. Those wires should run from the BCM plug to the ECM plug in your second picture. The connector in your first picture gets cut out and the ends get extended and soldered back together.



[Lonny]

Speaker wire

Vehicle communication interface

Speaker

Electronic brake control

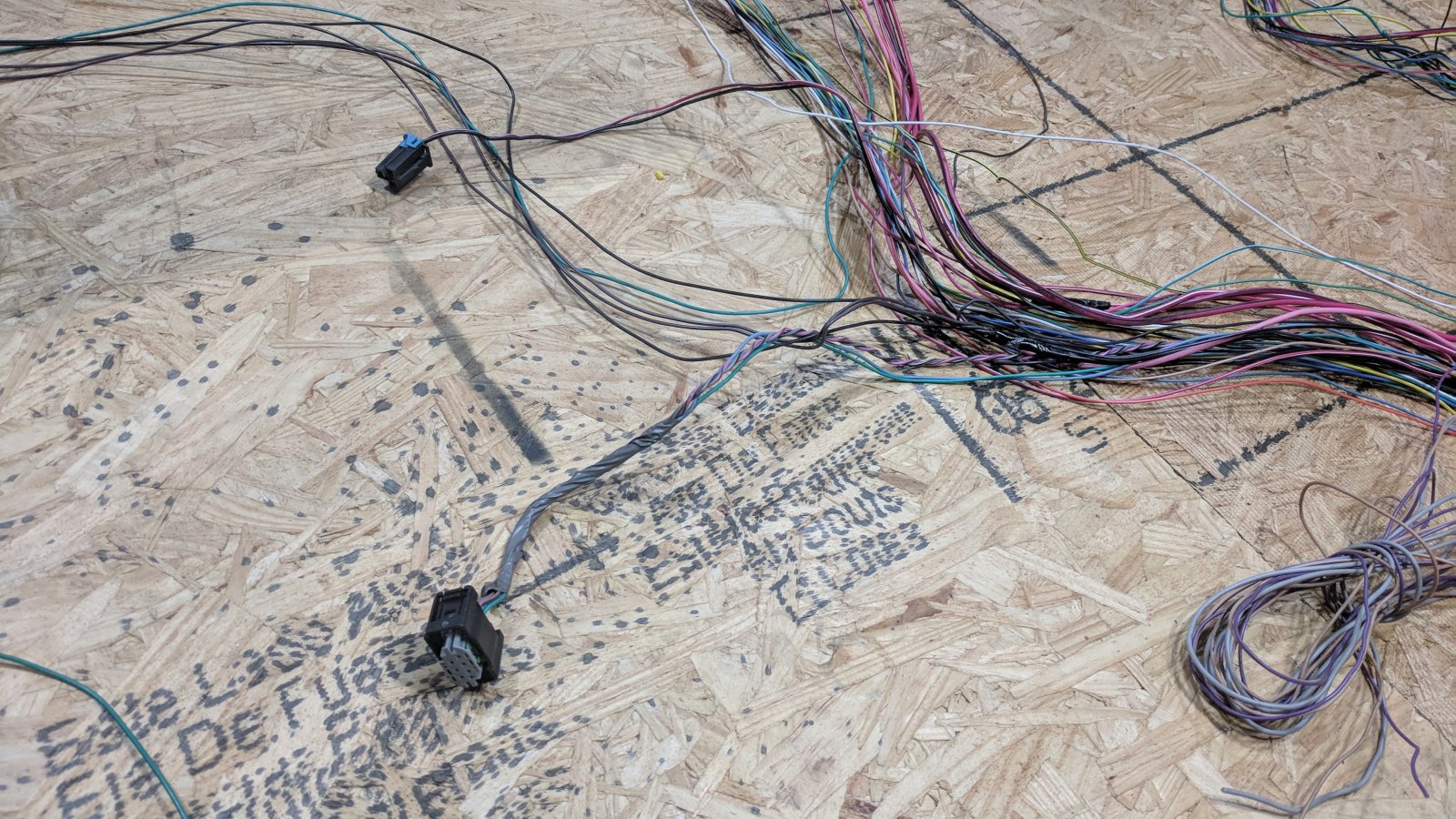

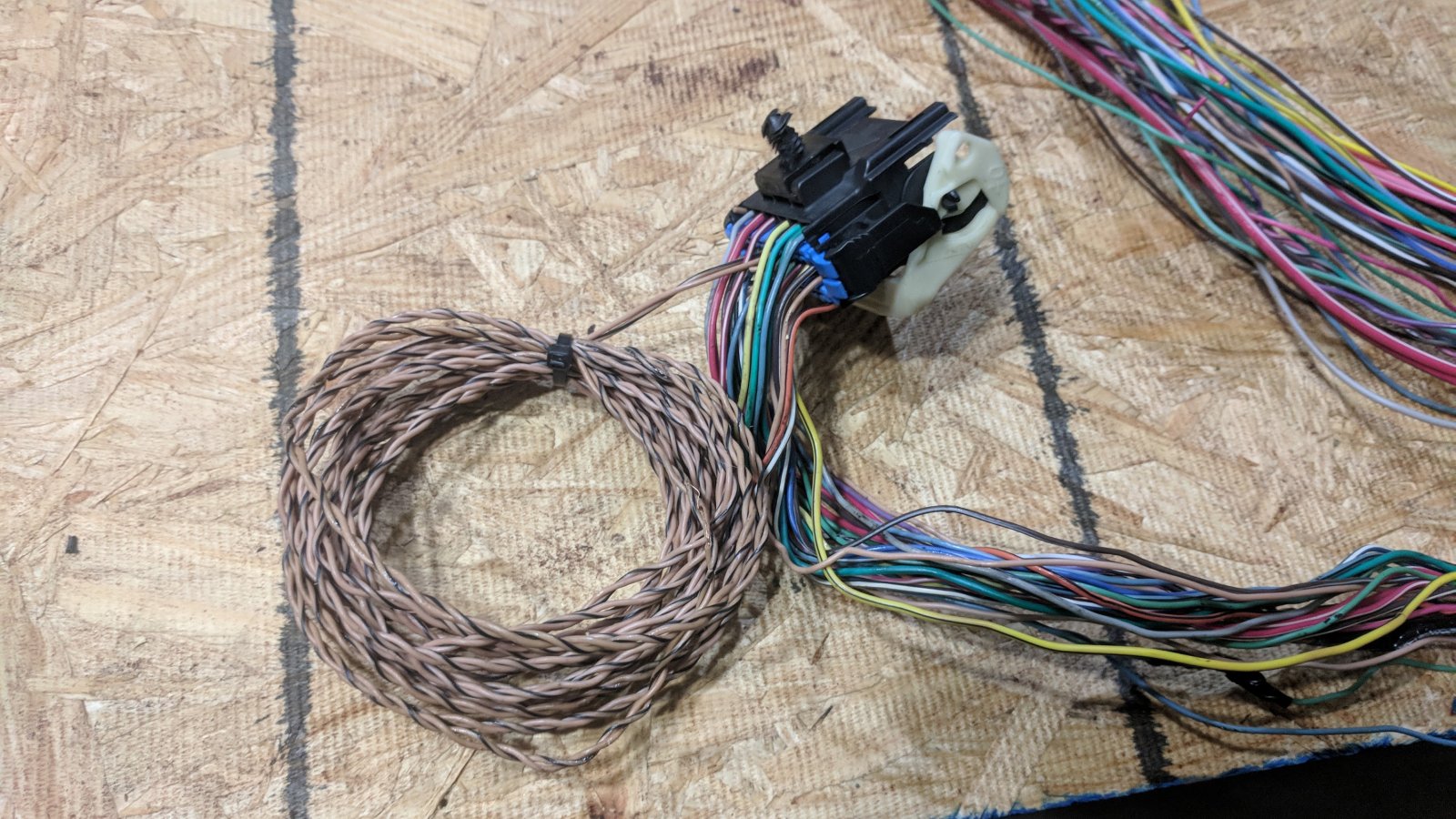

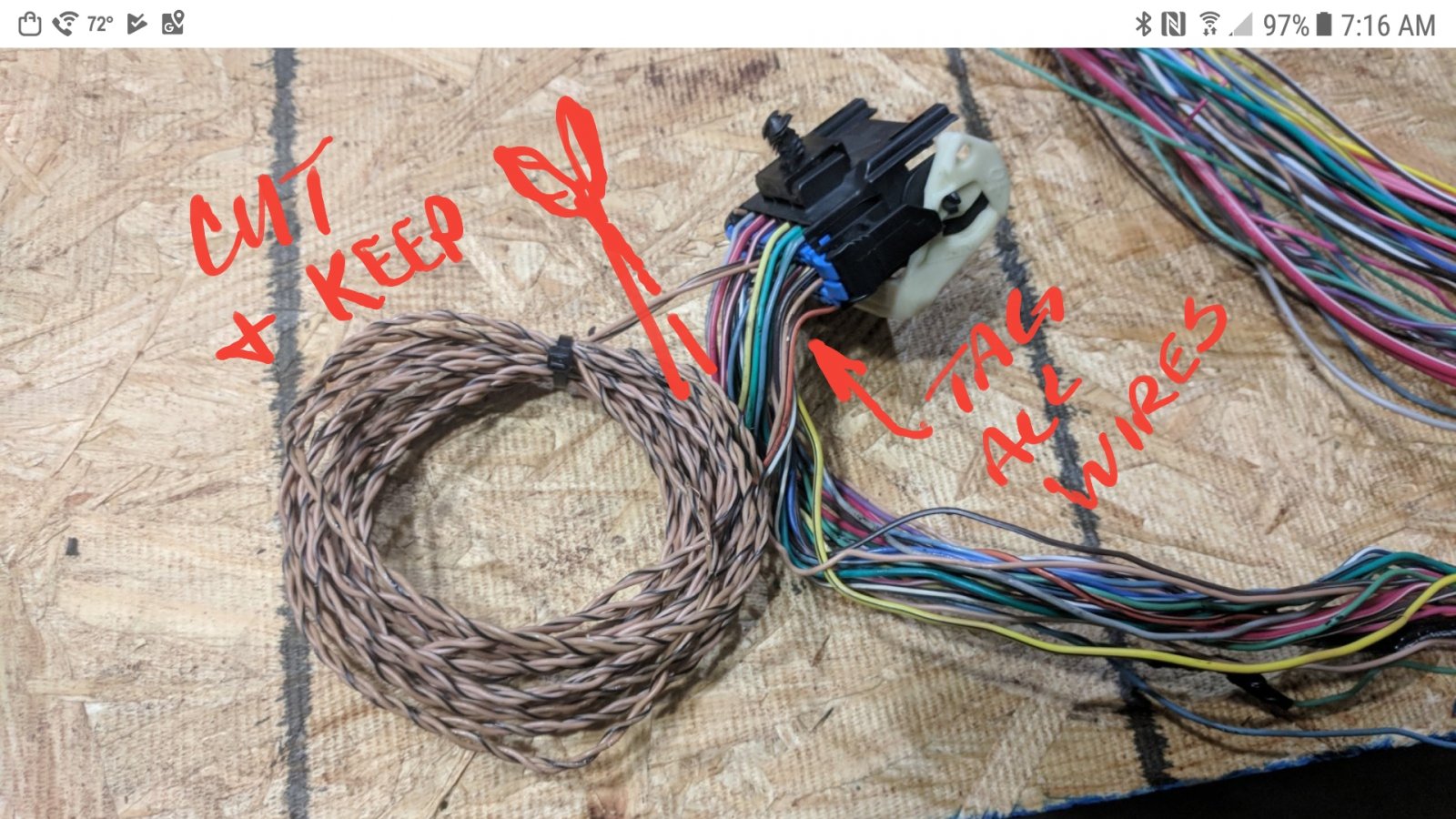

The other end of the twisted wires on the left should go to the ECM plug, they will be extended and attached to the blue and gray BCM plug that is part of your dash harness. I think it wires a little differently if you have the LCD display option.

Yaw and accessory power plug. Remove the yaw.

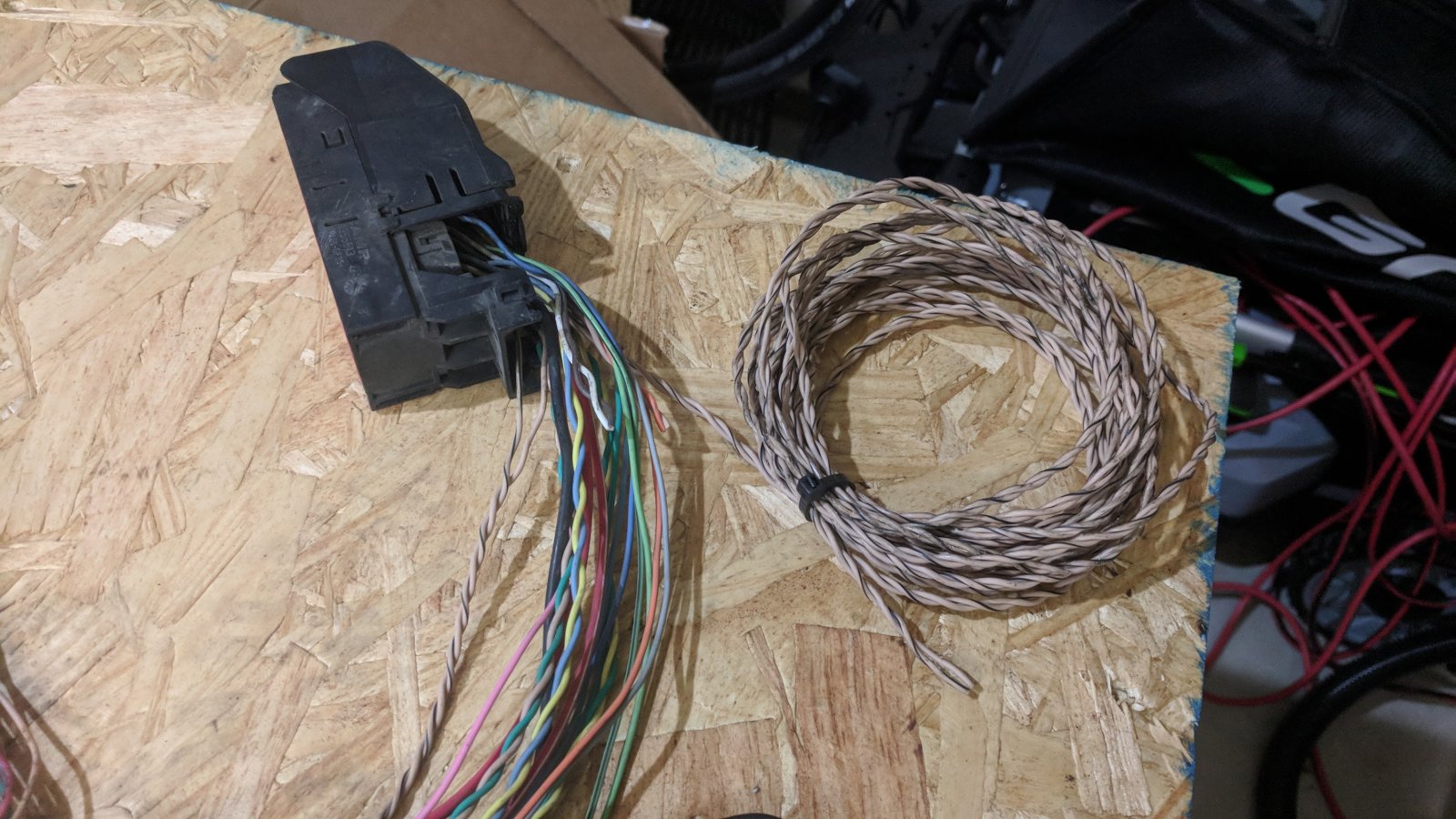

Keep the roll of data wire for extending later. Tag all of the rest of the wires to allow you to match them to the mating plug on the dash harness. Some of the wires on the big plug will not get used.

Sub woofer



[IDRVSLO]

Savior! Thanks Lonny! You wont get this support from any other place!



[IDRVSLO]

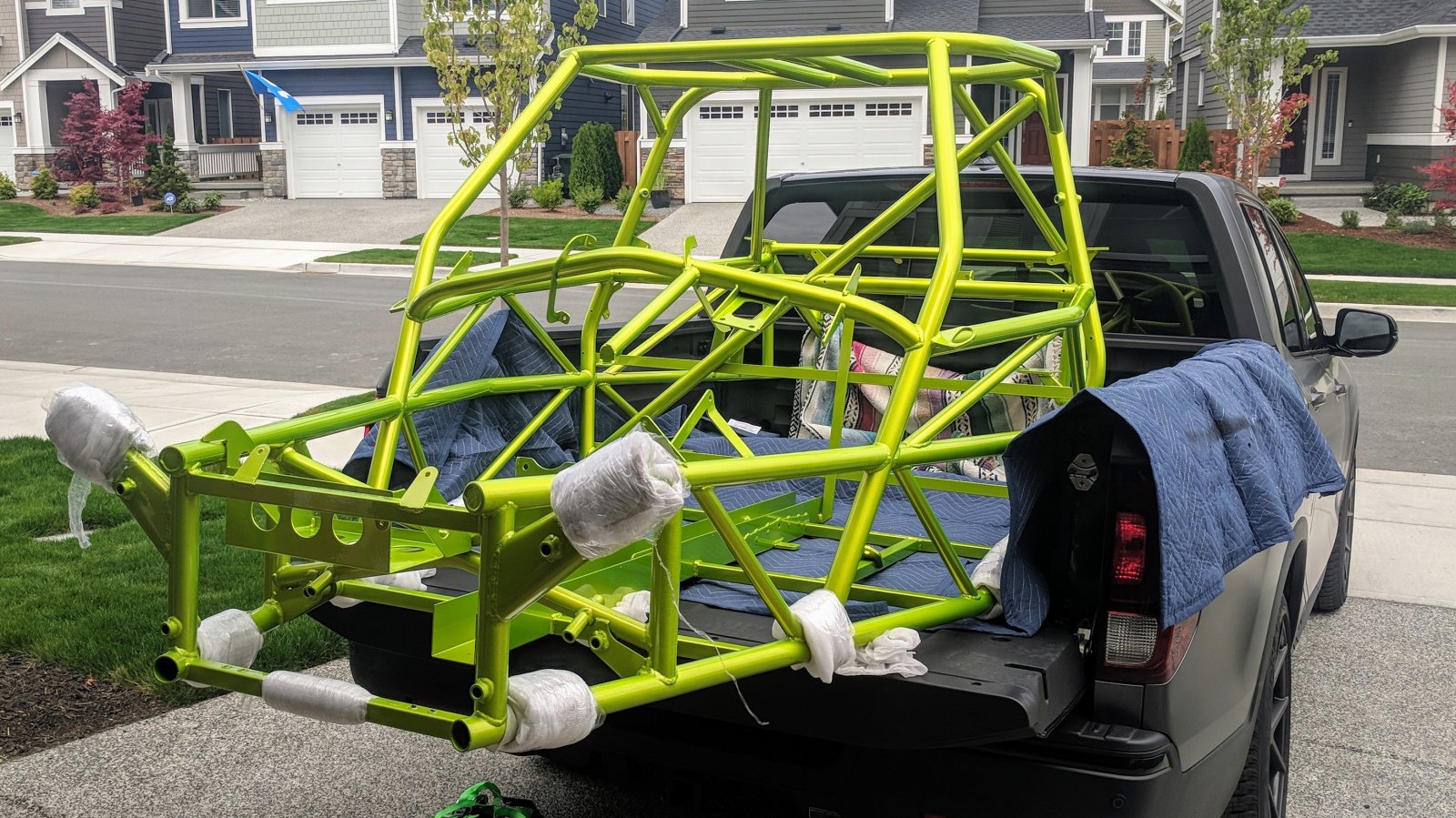

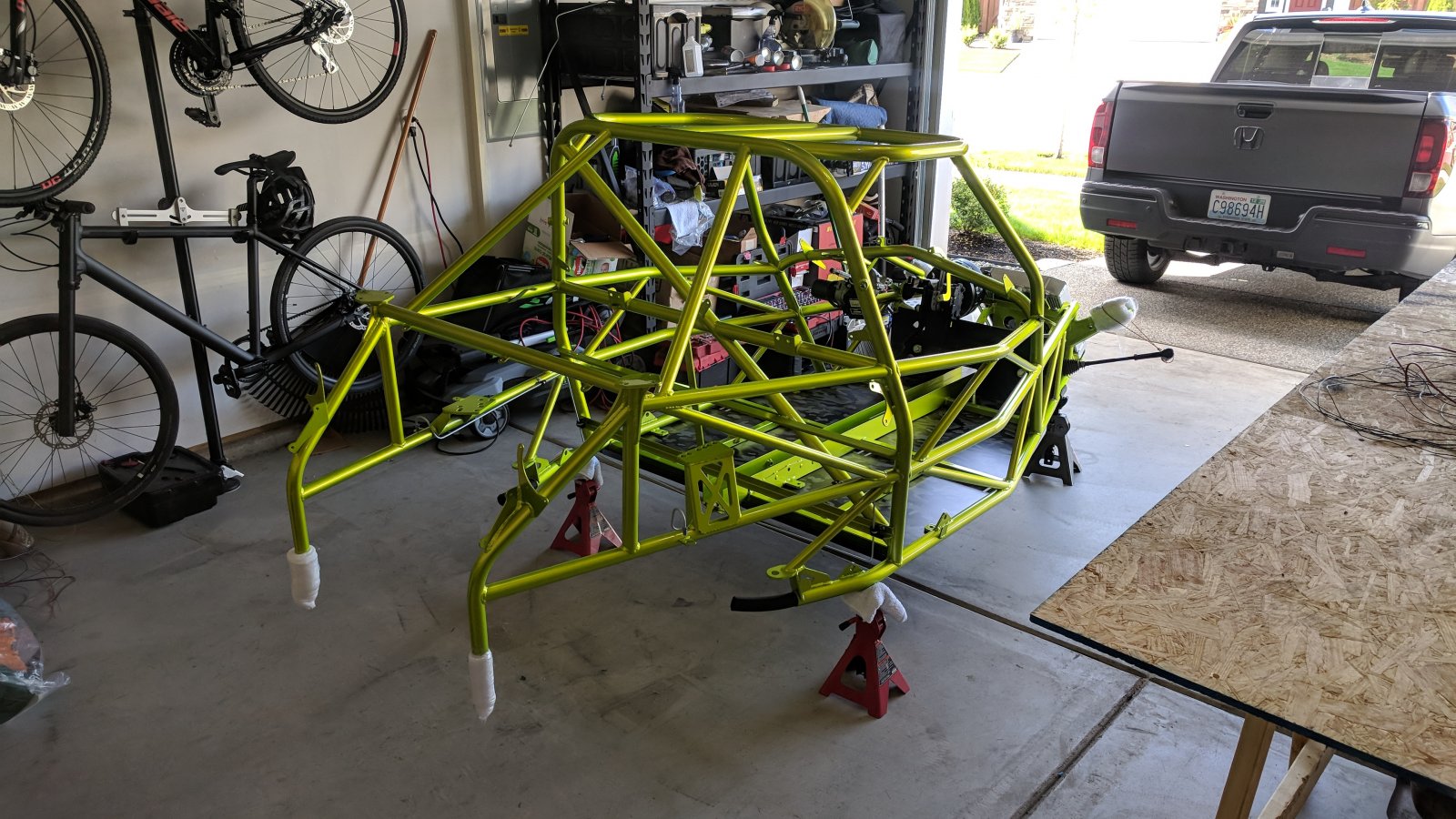

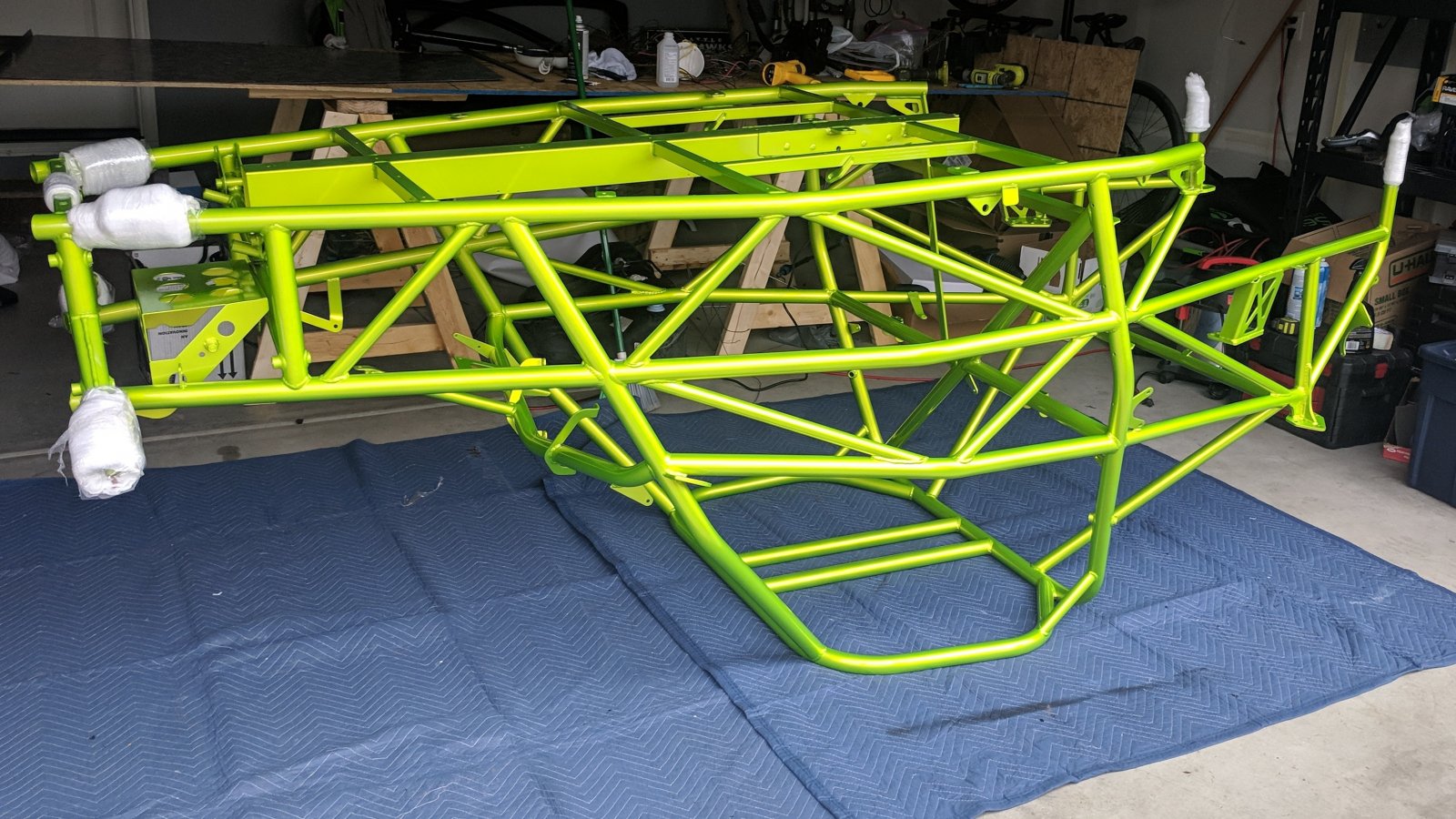

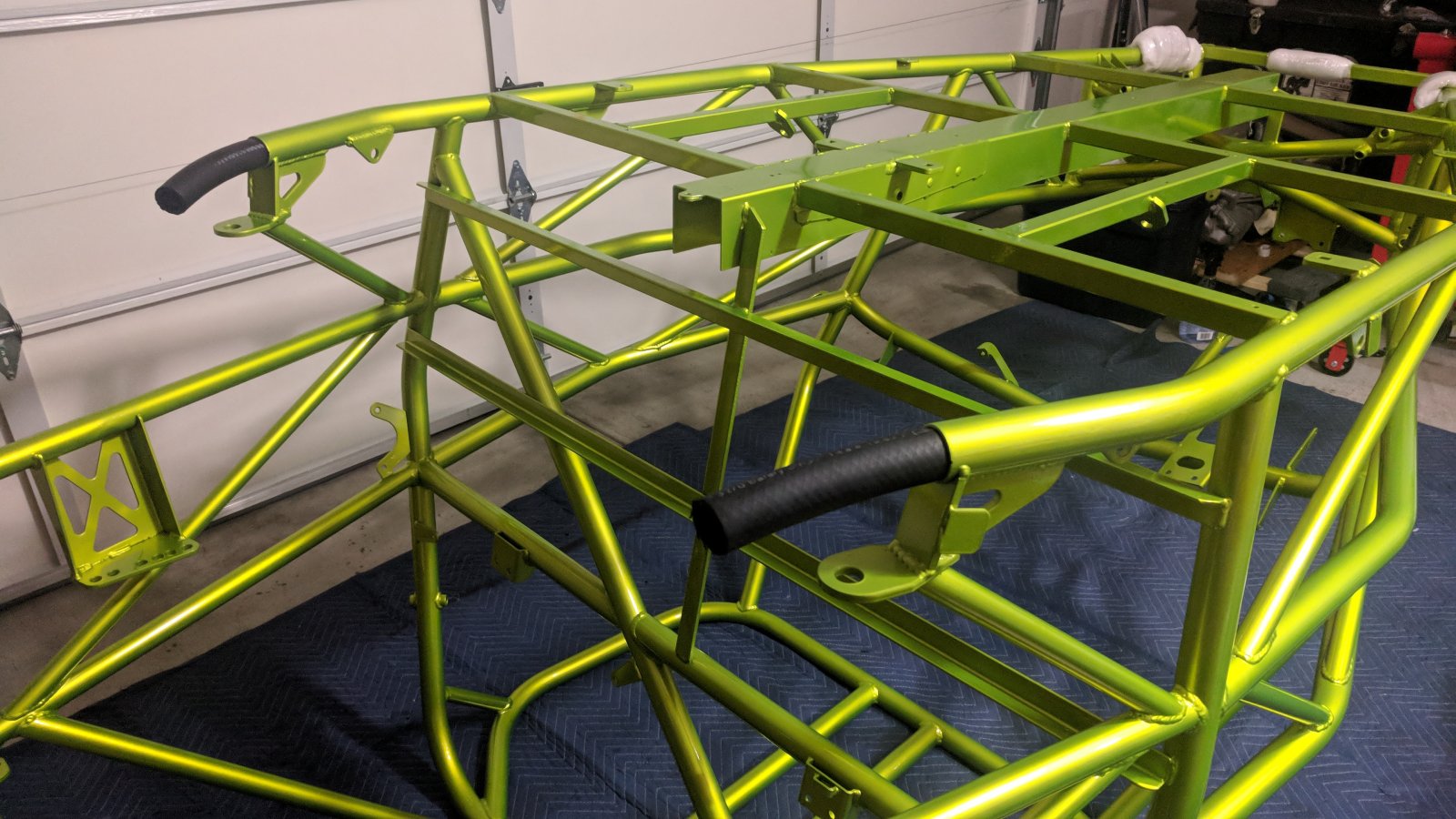

Picking up the frame and parts from powder coating tomorrow!



[IDRVSLO]

Love it!



[ctuinstra]

Looks great! Now the real fun begins.



[IDRVSLO]

Thanks! The color has such drastic differences as the light changes.



[IDRVSLO]

Wasnt too bad, about an hour or so to get these in.



[IDRVSLO]

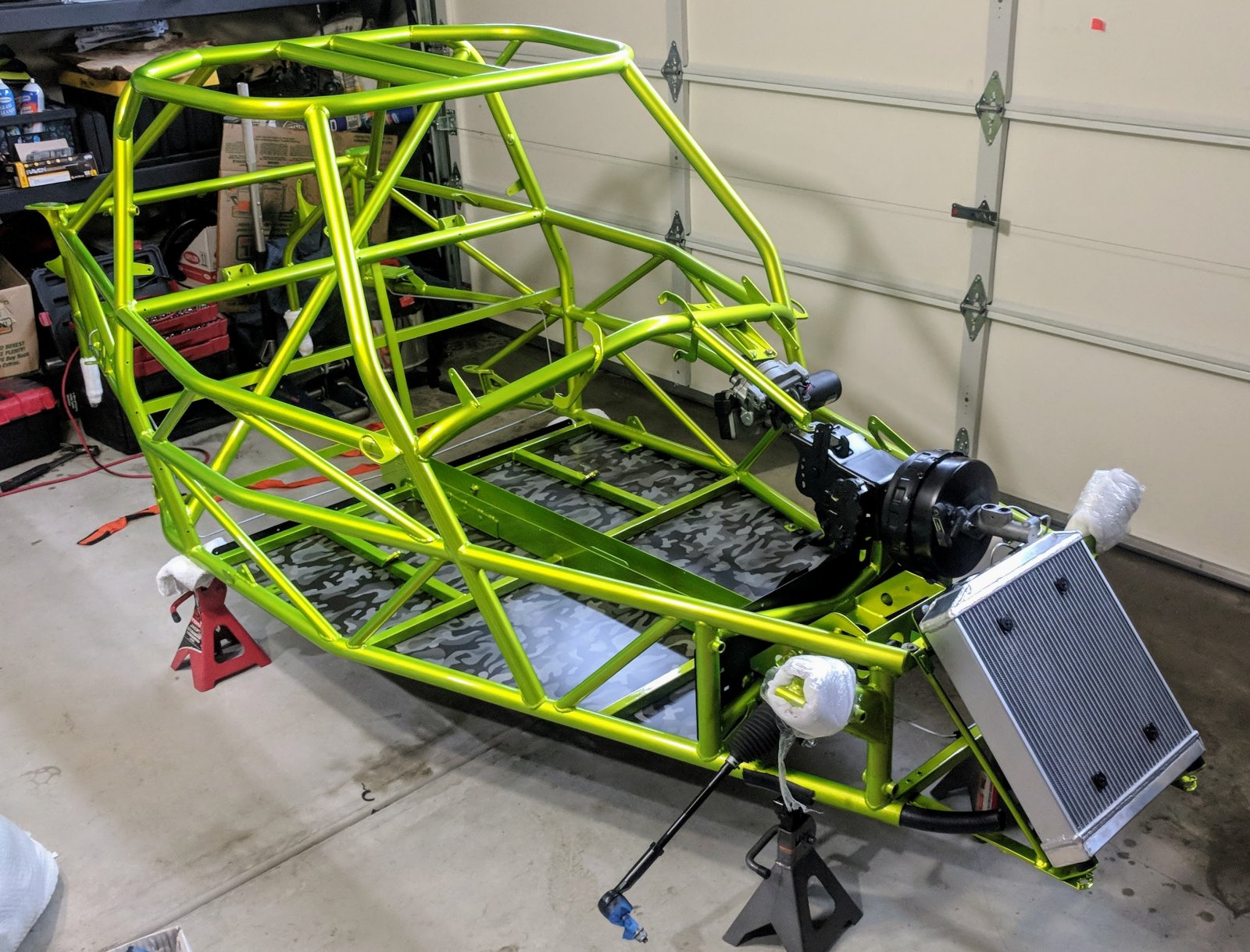

Still need to finish up the wiring harness....but wanted to bolt some stuff on today! I ordered a new clutch switch, the bolt sheared off when I tried to take the bolt out. So I need two bolts, one for the clutch and the other for the brake.

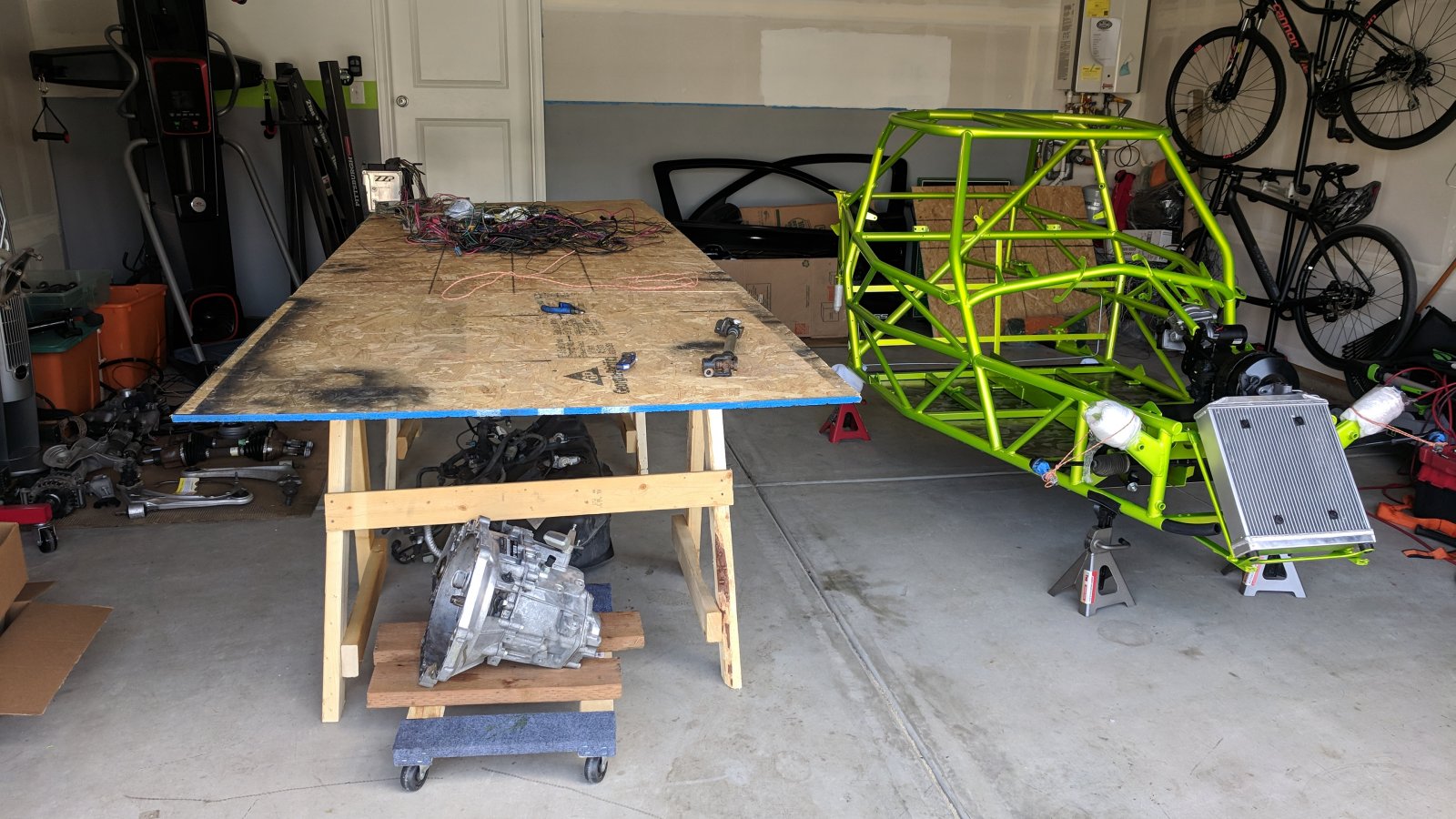

The radiator is just sitting in there for now, the bolts from the donor I used dont seem to be great for the radiator brace, what did you all use?

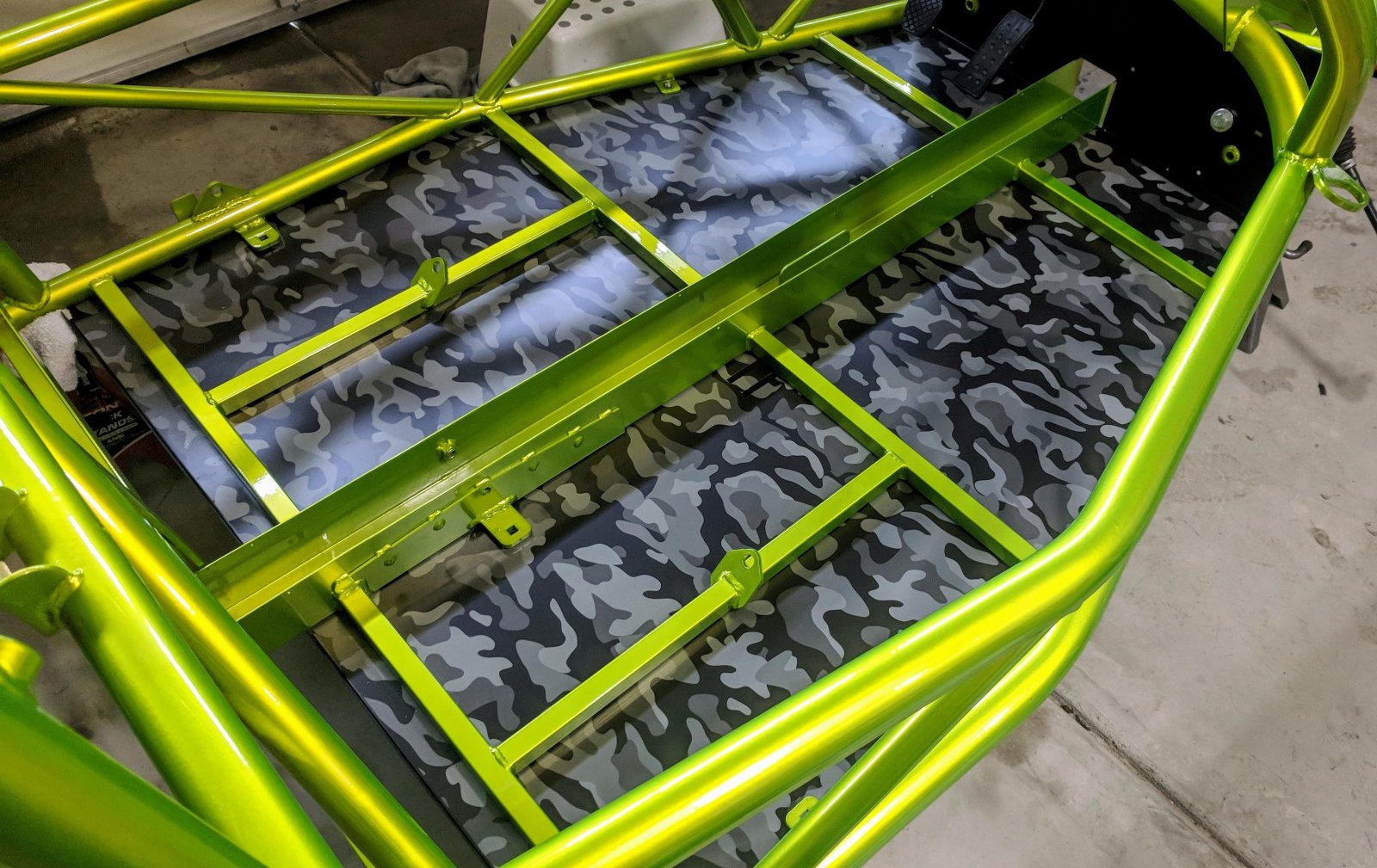

You guys get a sneak peak of the color combo for the body panels since I had to wrap the floor before installing it. Love the color contrast and cant wait to see it on the whole car.



[Briann1177]

That pattern is cool. Too bad one couldn't hydrodip the frame with a pattern like that.



[ctuinstra]

You are cooking right along!

That is very cool with the wrap on the floor.



[IDRVSLO]

Thanks guys! The plan based on ordering in stages is to be completed by Jan 1....so things will slow down for a bit. It will be nice to get the new engine in a few weeks.



[Lonny]

The bolts for the radiator brace are not metric they are 1/4-20. You should have a baggie with hardware for the radiator support.



[IDRVSLO]

Gotcha, the allen head bolts! Thx!



[IDRVSLO]

Always feels good to have a semi clean garage....need to really do some organizing this week and finish this wire harness.



[IDRVSLO]

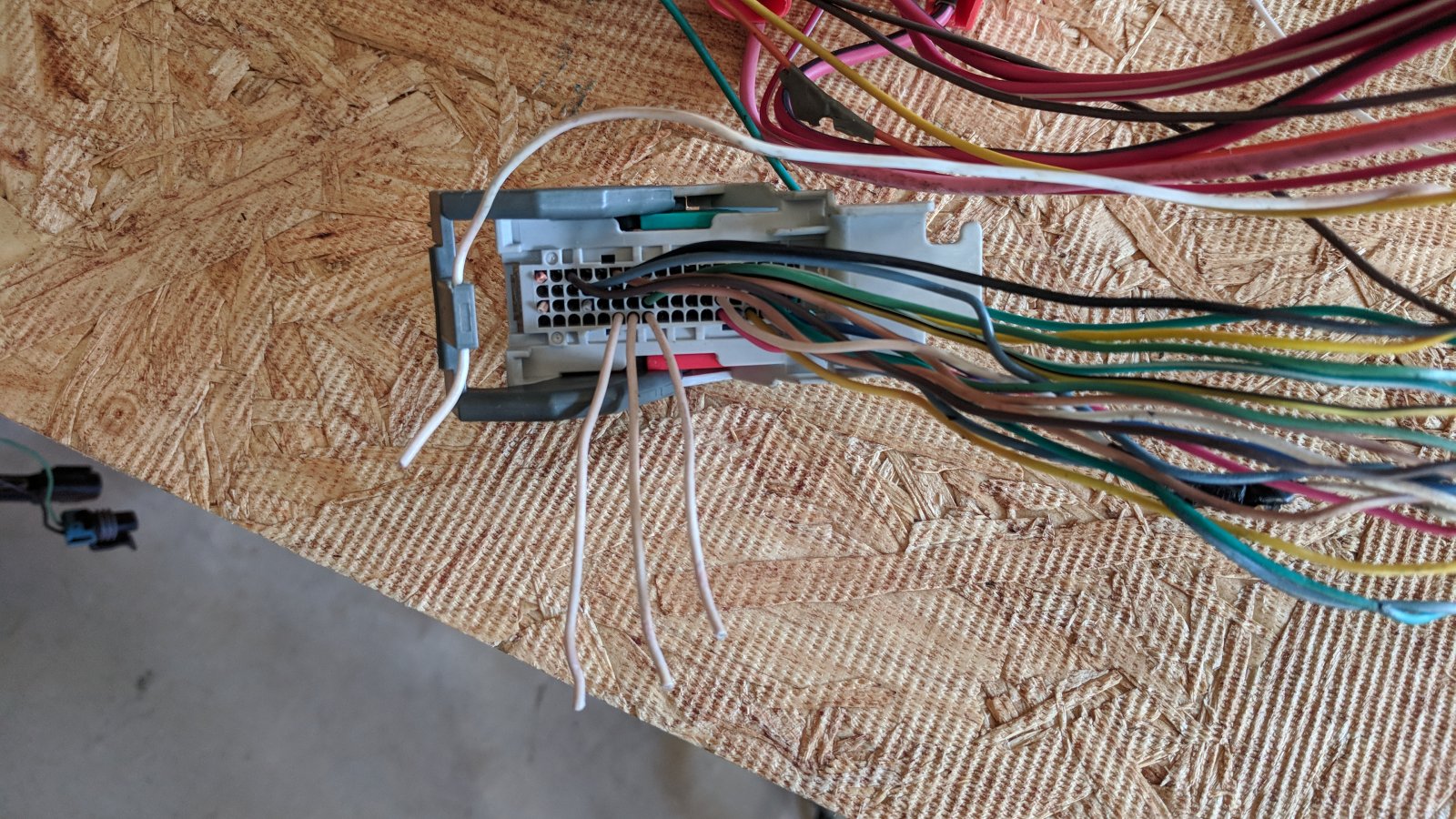

Accidentally cut the wrong white wire. Anyone know which of these three wires I need to solder back on?
