SC Heat exchange plumbing

[Towerdog]

Anybody have pics or want to share how the heat exchange is plumbed in up front?
There are 4 90 deg NPT to barb fittings and the Pex lines have Pex couplers that are smaller that the barb fittings. It seems like if you put the 90s in the radiator pointed at the tunnel then add hose from there to the Pex it would kink...



[Lonny]



[Towerdog]

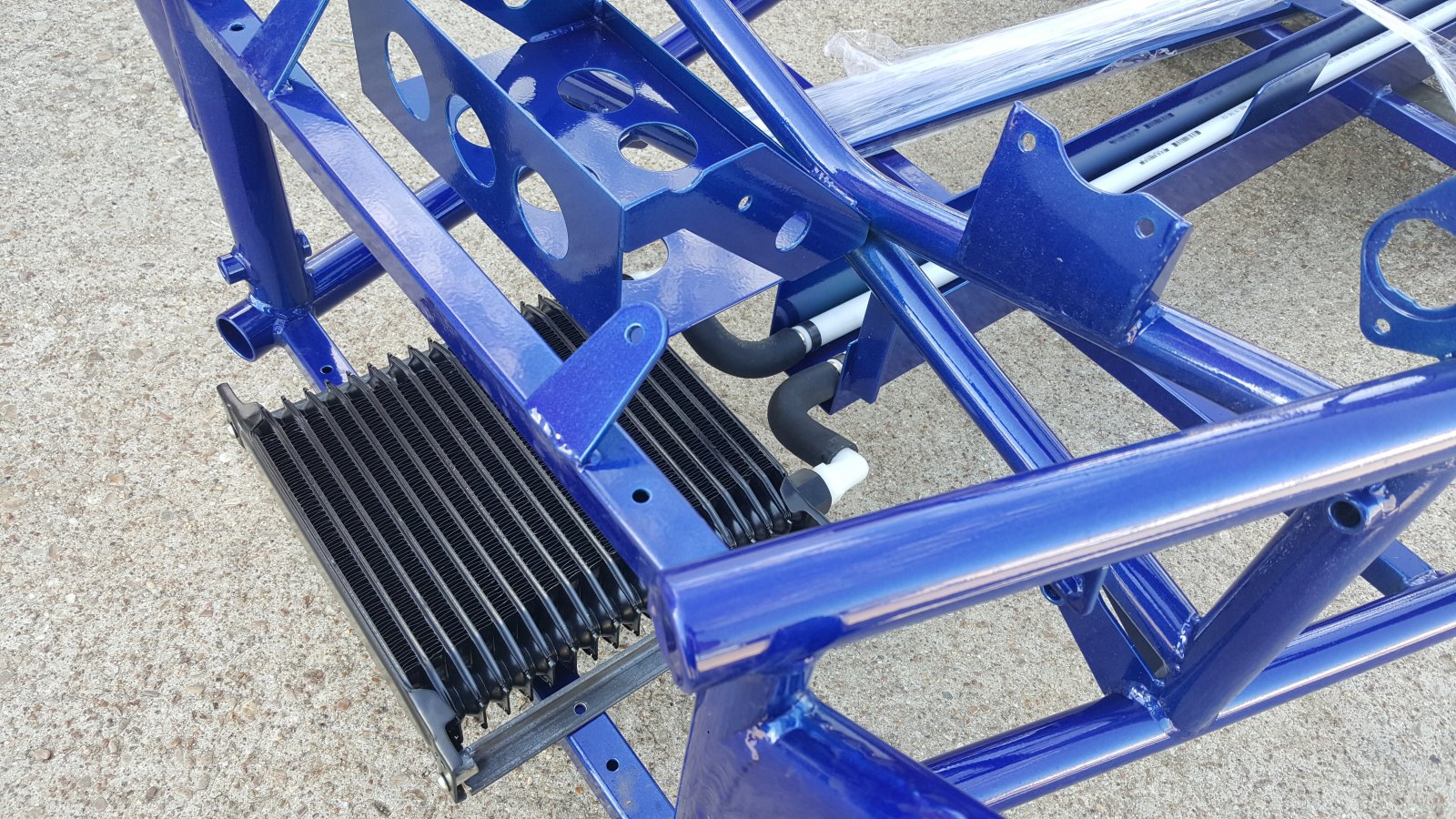

View attachment 21854

Thanks,. I may have used the wrong hose. I used the "U" shaped hose. Was I supposed to use the "S"?



[Towerdog]

So I am pretty much at a stand still as I do not know how the rear PEX mates with the engine. There are no supplied couplers of that size......



[r3drckt]

PEX?



[Towerdog]

PEX?

Plastic tubing with brass fittings. Used in residential and commercial plumbing for water distribution.



[Brett]

I took the U and cut it in half to make the L hose.

Also, you use more heater hose to go from the pex to the pump and intercooler, at least on a TC. Not sure which model you have.



[Towerdog]

I took the U and cut it in half to make the L hose.

Also, you use more heater hose to go from the pex to the pump and intercooler, at least on a TC. Not sure which model you have.

Thanks I have a SC. I cut the "U" for the front to the heat exchange.



[Lonny]

We supply the "U" to loop the heater core inlet and outlet on the engine. The "S" is for the heat exchanger.



[Towerdog]

Dang it... that would have looked much better.
Thanks Lonny



[Brett]

Sorry if I led you down the wrong path. Apparently I need to work on my alphabet.



[Towerdog]

Sorry if I led you down the wrong path. Apparently I need to work on my alphabet.

Your good... The deed was done before you responded..



[viperbmw69]

Does anyone have pictures or details for SS/SC Heat Exchanger Install? Is there only two screws to hold the Heat Exchanger to the frame? Is there not a fan on the Heat Exchanger?



[Towerdog]

Does anyone have pictures or details for SS/SC Heat Exchanger Install? Is there only two screws to hold the Heat Exchanger to the frame? Is there not a fan on the Heat Exchanger?

Yes only two screws hold it to the frame. If you did not purchase the duct kit there is a fan that ataches to the radiator.



[viperbmw69]

Yes only two screws hold it to the frame. If you did not purchase the duct kit there is a fan that ataches to the radiator.

Thank you, I did not order anything special for the SC. Only the SS/SC frame or order package.



[r3drckt]

Sounds like you should’ve received the fan then. Message dfgoblin support and they’ll send one out to you



[viperbmw69]

Sounds like you should’ve received the fan then. Message dfgoblin support and they’ll send one out to you

I need to clarify I may have the fan I have not checked yet. Mainly I need to understand the rear of the heat exchange install? I see the diagrams but what hoses and parts do I use?



[Ross]

Adam's first link is pictures of the heat exchanger.



[jayrolls]

Does anyone have pictures or details for SS/SC Heat Exchanger Install? Is there only two screws to hold the Heat Exchanger to the frame? Is there not a fan on the Heat Exchanger?

I was able to mount the fan and the ducts. Just had to make some pieces to space the duct plenum up a little to clear the fan.



[TravMac]

Maybe to help along with Lonny's pics, you can check out my pictures from my build log to see how the fan fits in there with the heat exchanger. There's some from the last few posts that show everything assembled on top of it too.

TravMac's Extended Track Goblin (#253) - 2007 SS/SC Doner

Looking good! Those Steel-It frames always seem to come out looking great.
