As far as removing the extraneous stuff from your engine harness, it's really up to you. Some people like to remove every little bit that's not needed, and others including me like to leave well enough alone. There is no technical need to get rid of it.

Thanks. I think I've got the red wire taken care of. When it comes to the brown there are two which is where my confusion was initially. One for the guages and one for the clutch petal sensor. Both brown with white stripe. I think I need to find where they end up (in the fuse box) so I can try locating which wire does what, then use a tester to see which brown wire i am on. Hope that makes sense.



[Briann1177]

Your particular year might be different, but the brown/white wire that runs to my gauge cluster is the check engine light indicator. It runs from the purple/black connector on your engine harness, through the big dash/body connector you cut out and eventually solder extensions to, and up to your gauge panel.



[BaltimoreHokie]

Your particular year might be different, but the brown/white wire that runs to my gauge cluster is the check engine light indicator. It runs from the purple/black connector on your engine harness, through the big dash/body connector you cut out and eventually solder extensions to, and up to your gauge panel.

I am not sure what purple connector your referring to. I didn't see any that we're purple. Do you have a picture?

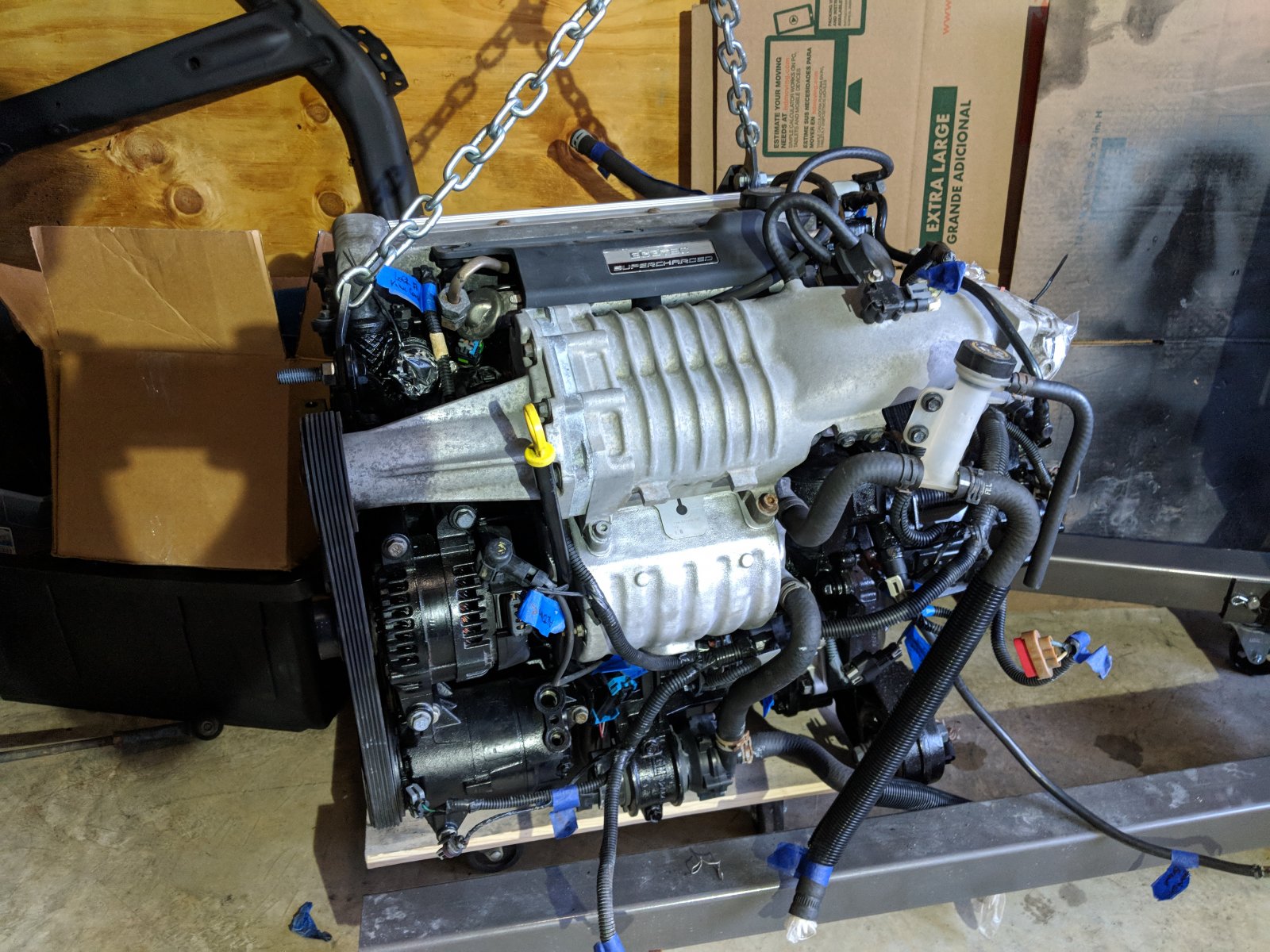

Got a little done to the engine. Trying to get the motor all ready so I replaced the timing chain tensioner, oil filter, starter and began putting everything back together. I still need to button it up and replace the wiring.

Since my powder coat is going to be copper color and another 2 weeks. I am not sure what color I want to paint the valve cover and supercharger. I may just put it back together and wait.



[Briann1177]

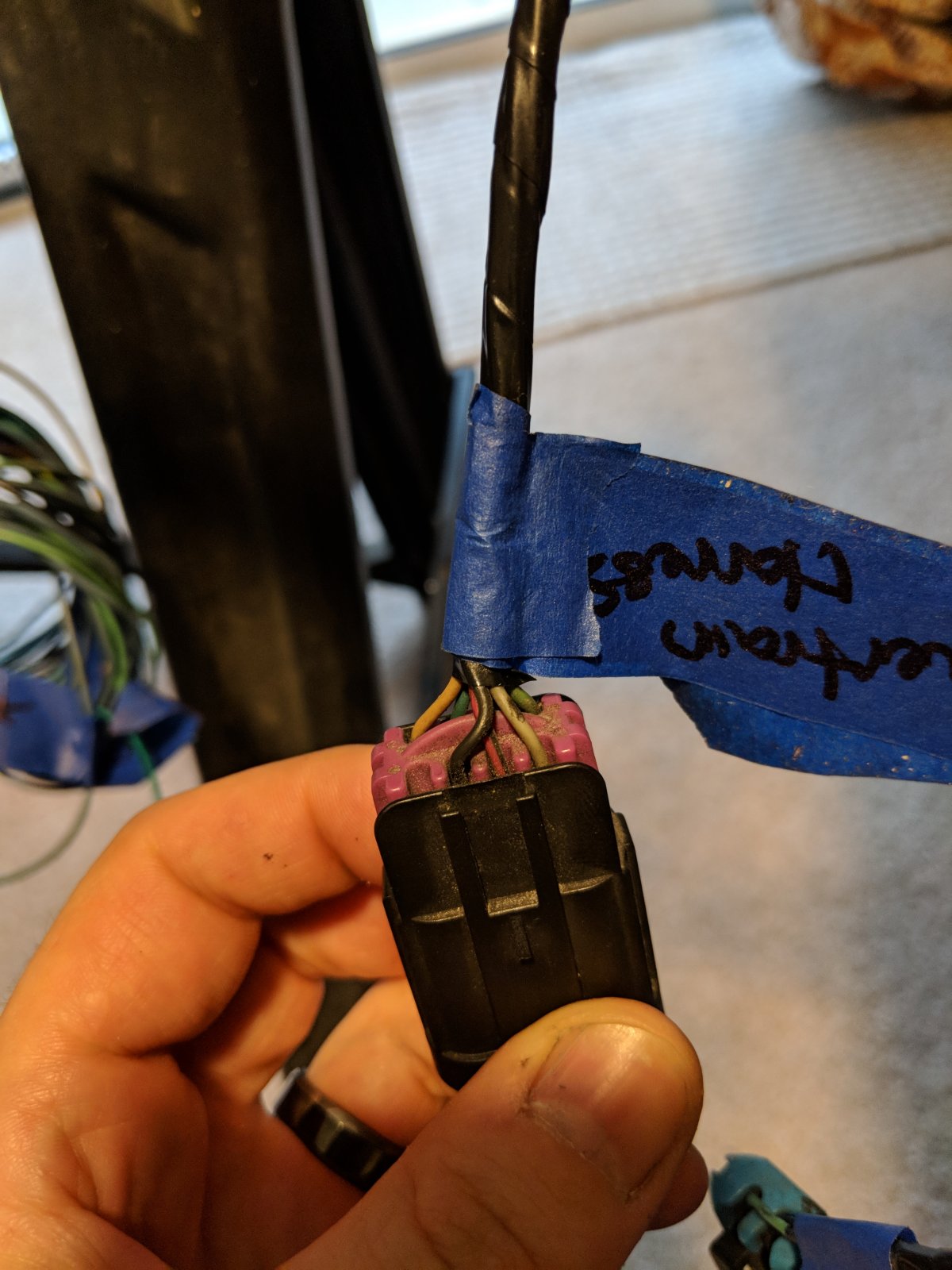

It's the one that connects your engine harness to your body harness. See 4:57 in part 20 of the build videos. It just shows the connector and how it plugs together. I know you're probably not that far yet. Assuming we're talking about the same brown/white wire for your gauge cluster, then it should originate from the these connectors. I just kind of assumed gauge cluster when you mentioned "gauges."



[BaltimoreHokie]

It's the one that connects your engine harness to your body harness. See 4:57 in part 20 of the build videos. It just shows the connector and how it plugs together. I know you're probably not that far yet. Assuming we're talking about the same brown/white wire for your gauge cluster, then it should originate from the these connectors. I just kind of assumed gauge cluster when you mentioned "gauges."

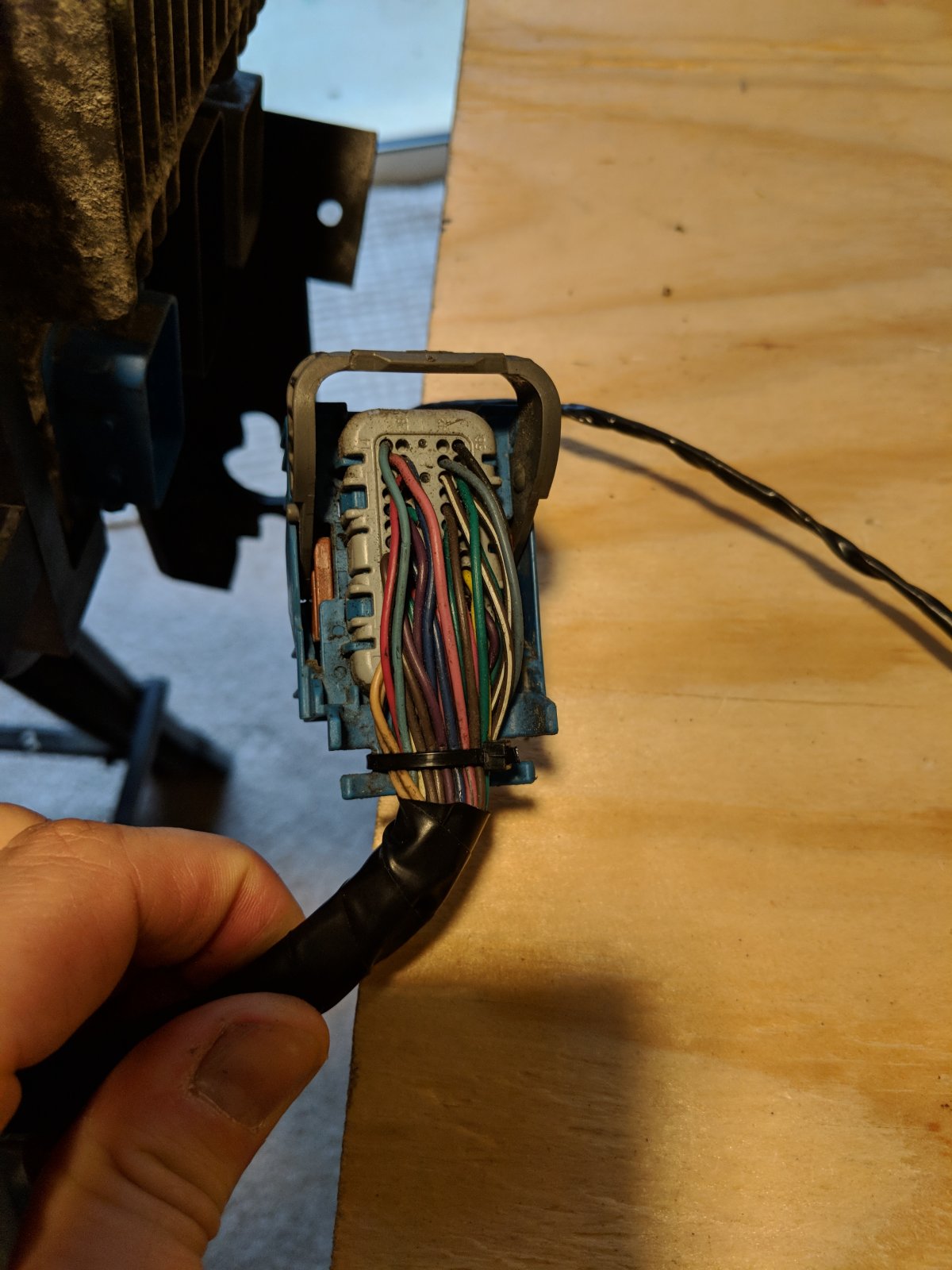

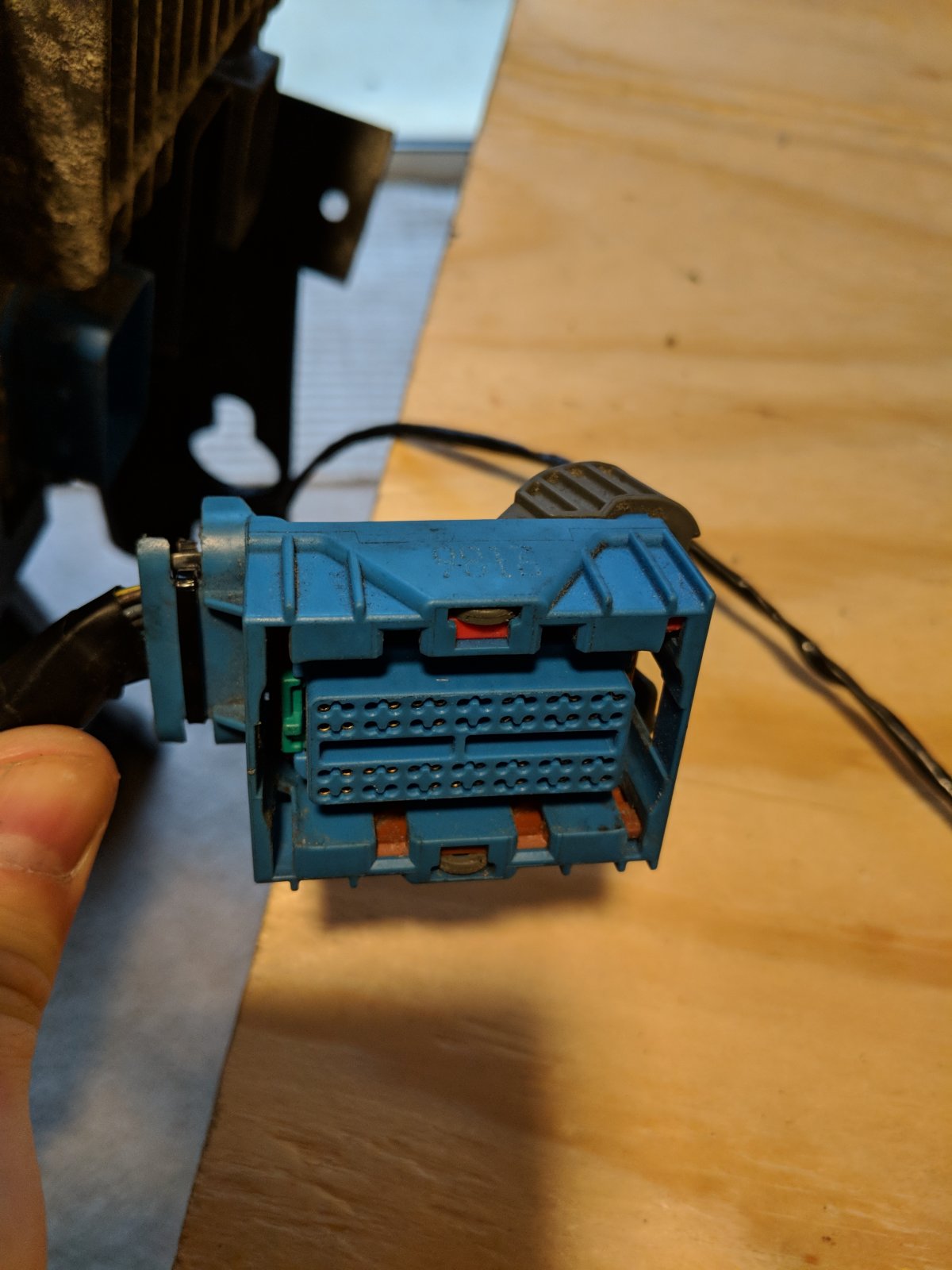

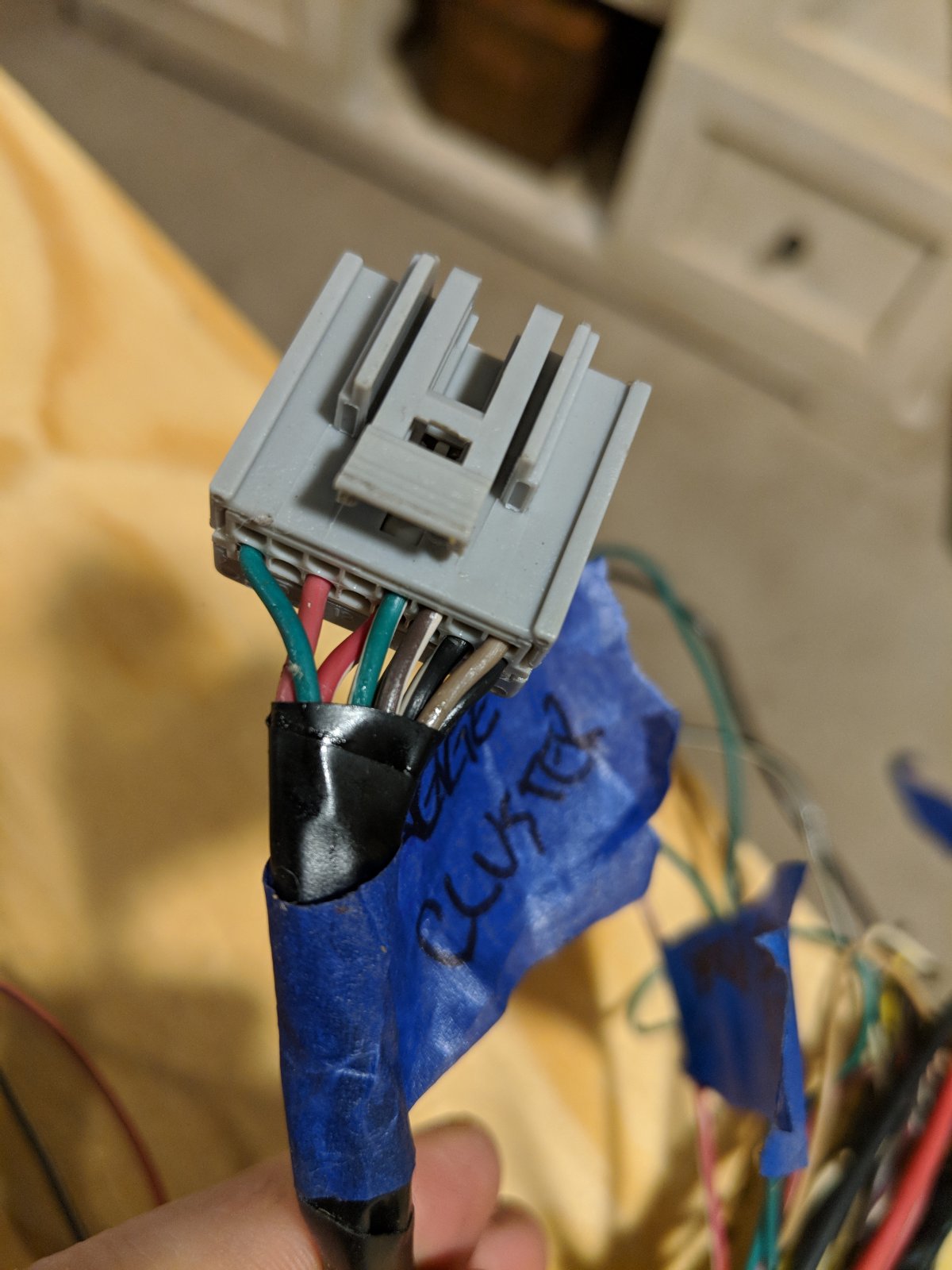

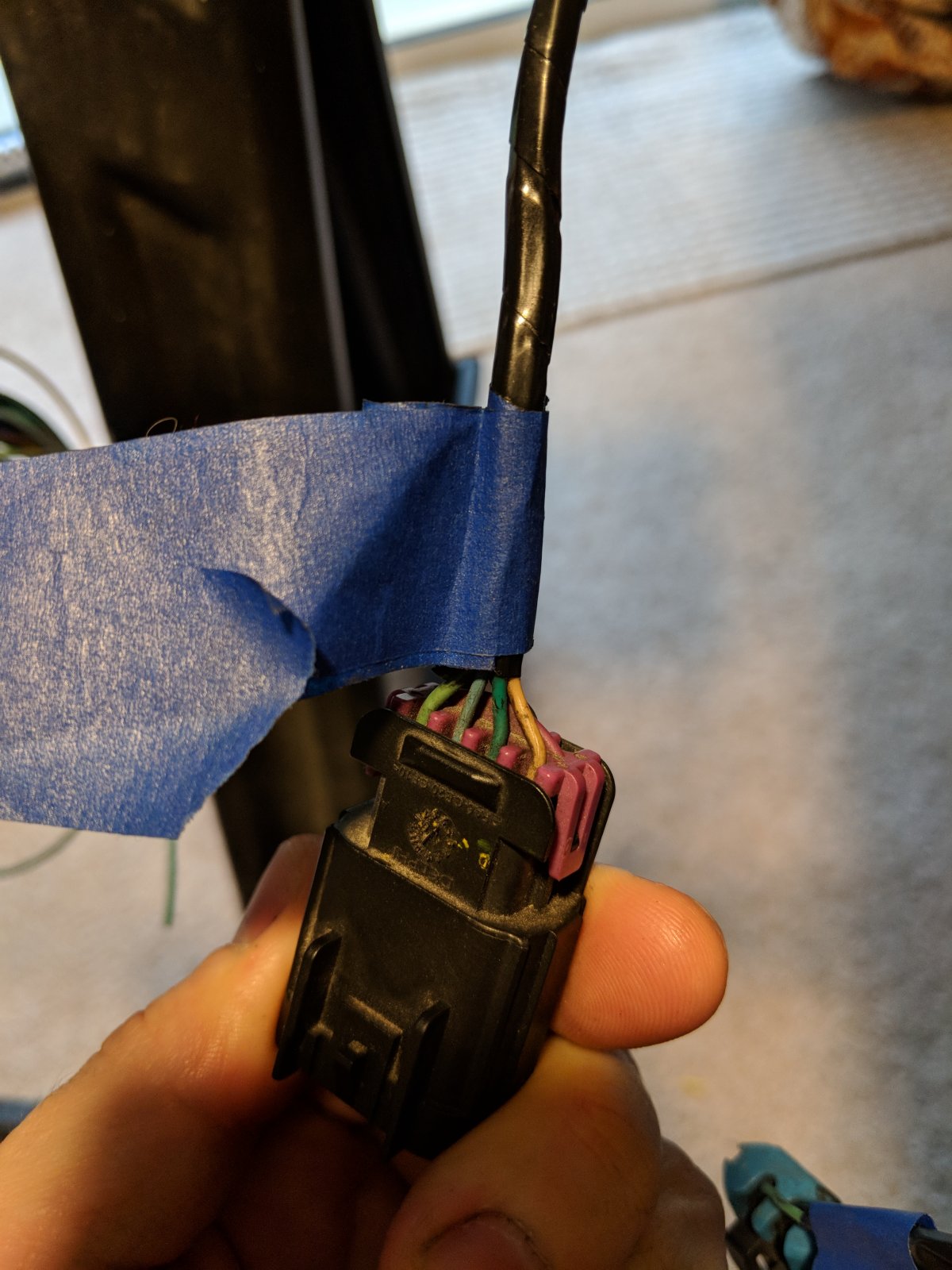

Hmm. That is what I mean but on that connector I don't have any brown wires. But my guage cluster does. See pictures below.

I do know my Clutch petal position sensor is B9, and the "mil control" is C8. But. They are both brown/white so I can't track them down.

The only brown wires that I've found near the fuse box is this connection (last picture)



[BaltimoreHokie]

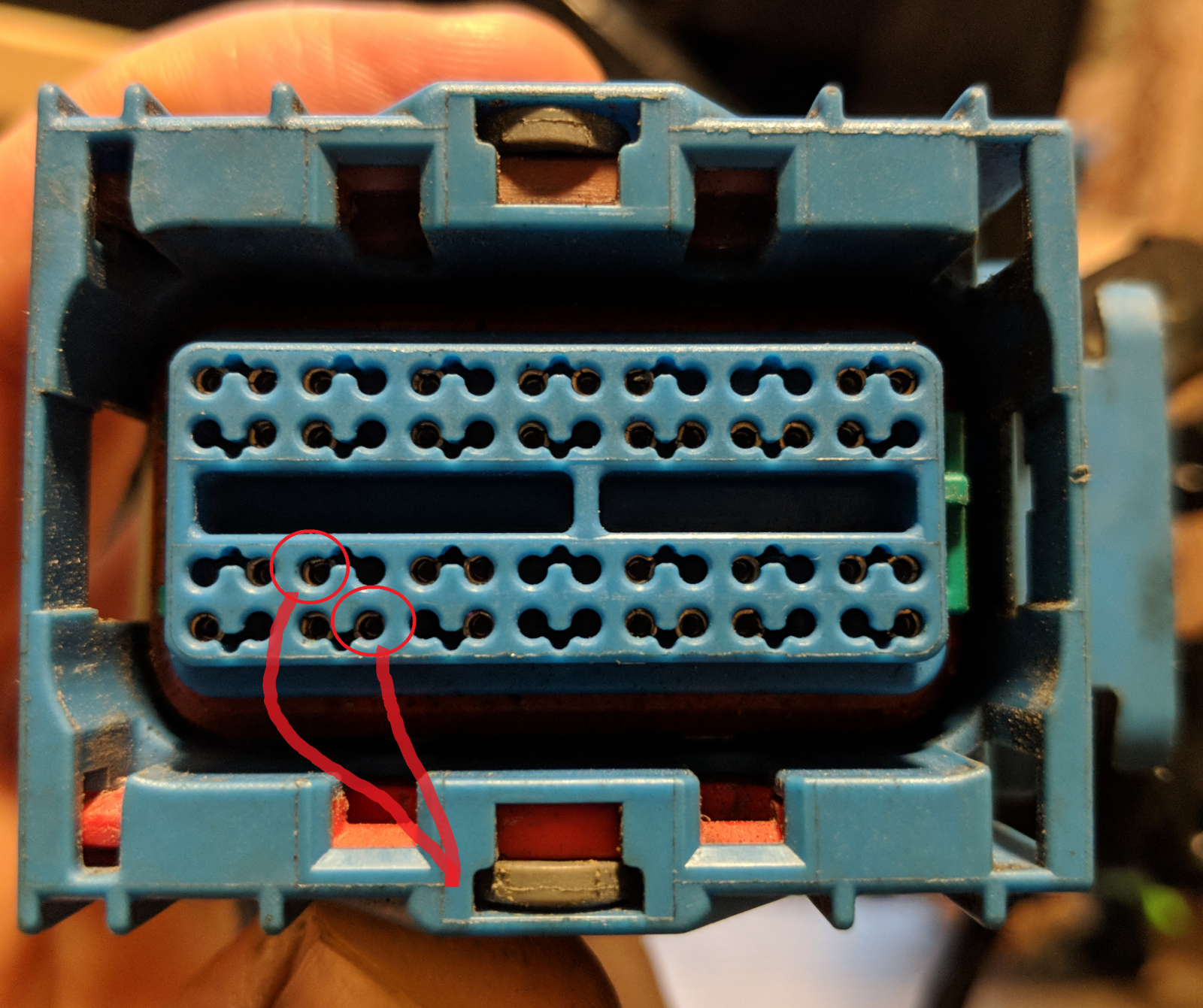

Ok .did some digging. I have two brown wires on the computer connector.Pins 53 and 40. I verifed they are the two brown wires in question with a miltimeter. Any idea which ones are those?



[Briann1177]

Pin 40/C8 is your MIL control. Pin 53/B9 is your clutch pedal. The C8 and B9 are the corresponding pins on the body harness connector.



[BaltimoreHokie]

Pin 40 and C8 is your MIL control. Pin 53 and B9 is your clutch pedal.

Thanks so much, I actually just now found it after an hour on the site. Finally I just searched "56-way" and it pulled up. Pin 53 = CPP Pin 40 = Mil Control
Going to solder it now.



[Briann1177]

It took me forever to find it too. LOL. The Chilton site is a great resource, but holy cow can stuff be hard to find on it.



[BaltimoreHokie]

It took me forever to find it too. LOL. The Chilton site is a great resource, but holy cow can stuff be hard to find on it.

Yeah for sure. Thanks again.

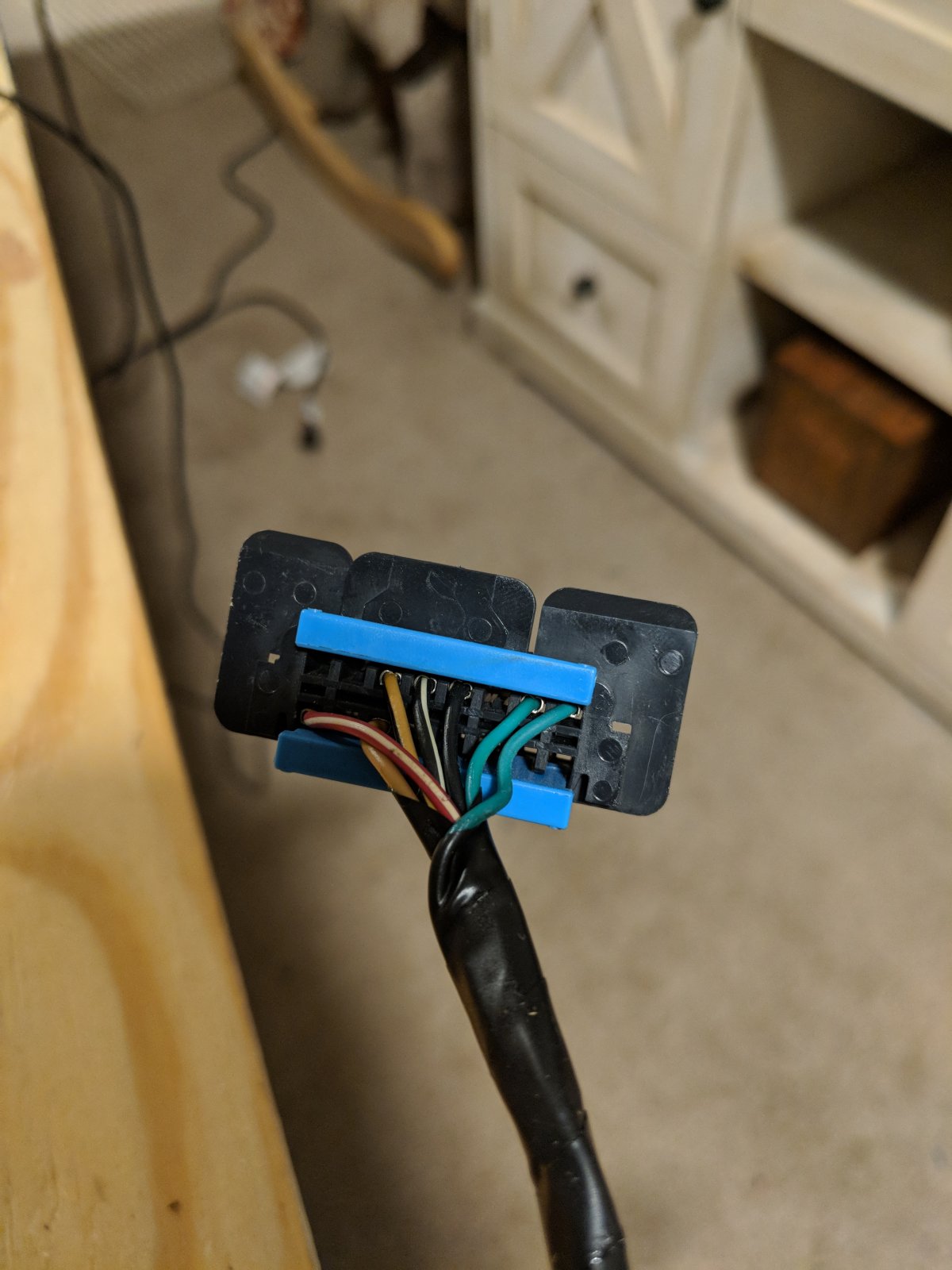

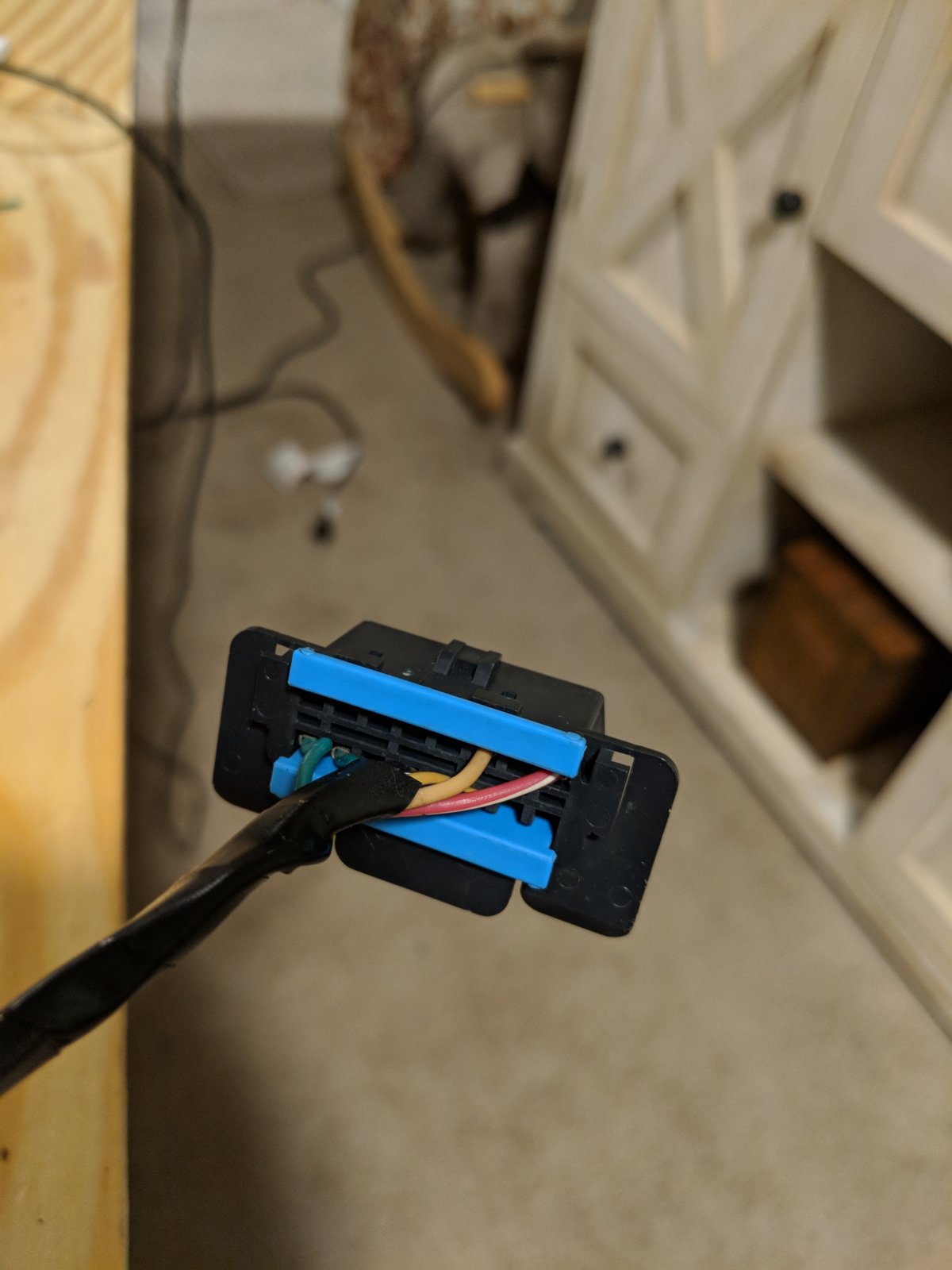

Any idea where the red and white wire from the obd2 should go? I just want to make sure that is correct while I am at it.



[Briann1177]

Not without going back to Chilton. I did post a pic a few replies ago on where mine runs. Yours might or might not be the same.



[ctuinstra]

Yeah for sure. Thanks again.
Any idea where the red and white wire from the obd2 should go? I just want to make sure that is correct while I am at it.

One thing I know about that wire is that it is powered all the time. When I bought my OBDII scan gauge is said the 07 SS/SC was the one vehicle that you could not use the power from the OBDII port and would have to find another. It didn't go into detail as to why. I found out the reason why is that line never powers off and there for the scan gauge would eventually time-out and turn off but would never see the line go hot again (because it's hot all the time) and therefore never turn back on. I had to find a different power wire that was wired to the accessory.

Point of all of this, my my year and model, it's powered all the time. Your's doesn't have to if you don't want it too. You can wire it to any power or accessory.



[ctuinstra]



[BaltimoreHokie]

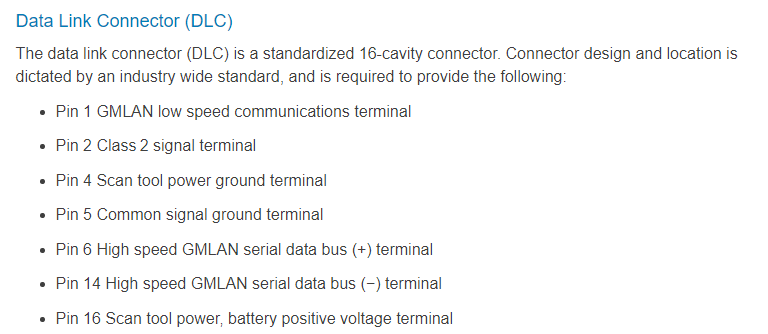

View attachment 3479

Yeah. I just tracked it down. I had that wire correct.
I am still not going to wrap it up yet. But I think I've gotten everything correct so far.



[BaltimoreHokie]

View attachment 3479

Any idea why the video says to use the seat harness for the dash buttons wires?



[Briann1177]

It's just a left over connector that DF picked to use for hooking up the dash wiring. You can use it if you want. I'm building my own custom connector.



[ctuinstra]

Any idea why the video says to use the seat harness for the dash buttons wires?

Just a convenient connector to use that is otherwise tossed in the trash.



[BaltimoreHokie]

It's just a left over connector that DF picked to use for hooking up the dash wiring. You can use it if you want. I'm building my own custom connector.

Just a convenient connector to use that is otherwise tossed in the trash.

Thanks. Wasn't sure how it all came together.



[BaltimoreHokie]

Had a little time. Packed away the harness supplies and put the engine harness back on the motor. The heat exchanger pump has a clip on it. Can some one take a close up of it? I can't remember how to get it on.



[BaltimoreHokie]

Nevermind. I found a picture online.
